MAX4730ELT+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4730ELT+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4730ELT+T

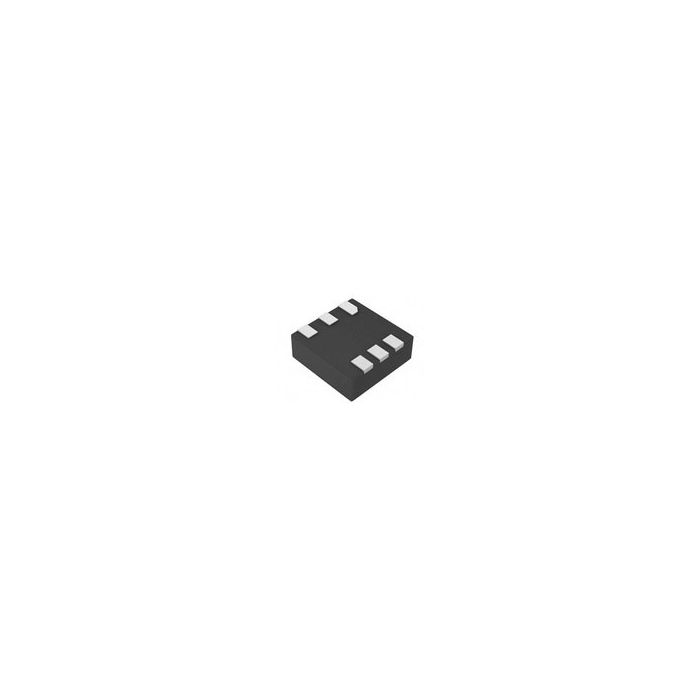

Analog Switch Single SPDT 6-Pin UDFN T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 339
  • Inventory 2
  • PCNs 7
  • MaskPart MAX4730ELT+%
  • IntroductionDate May 01, 2004

Parametry

  • Chip Enable Signals Yes
  • Configuration Single SPDT
  • Function General
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 300(Typ)@3.6V
  • Maximum High Level Output Current (mA) 80
  • Maximum Low Level Output Current (mA) 80
  • Maximum On Resistance (Ohm) 5.5@2.7V
  • Maximum On Resistance Range (Ohm) 5 to 10
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 168
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) 0.001@5.5V@-40C to 85C
  • Maximum Turn-Off Time (ns) 26@3.6V
  • Maximum Turn-On Time (ns) 45@3.6V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.8
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 1
  • Number of Inputs per Chip 1
  • Number of Outputs per Chip 2
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Extended
  • Switch Architecture SPDT
  • Switch Control Logic Active Low/High
  • Switch Normal Position NO/NC
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) 0.000001@5.5V

Więcej informacji

Do pobrania Download
Main description Analog Switch Single SPDT 6-Pin UDFN T/R
