MAX4707EXK+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4707EXK+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4707EXK+

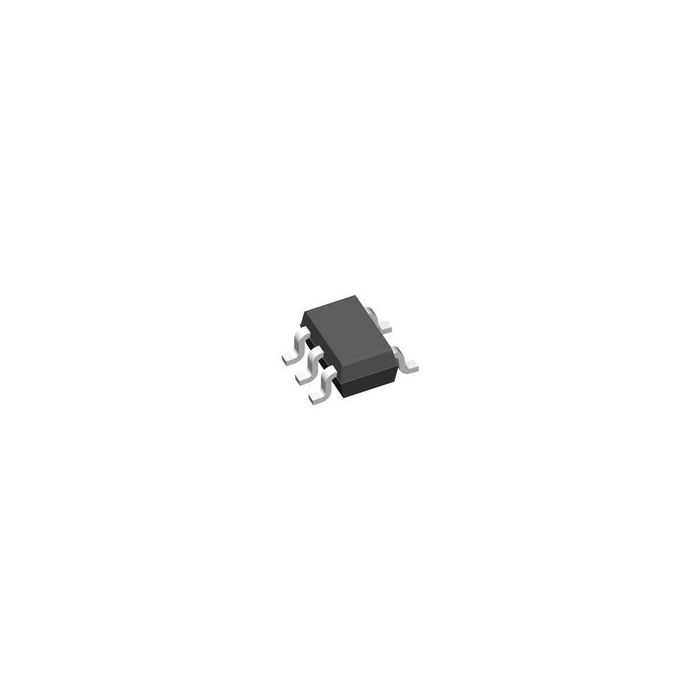

Analog Switch Single SPST 5-Pin SC-70

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 280
  • Inventory 3*
  • PCNs 7
  • MaskPart MAX4707EXK+%
  • IntroductionDate Jan 01, 2004

Parametry

  • Chip Enable Signals Yes
  • Configuration Single SPST
  • Function General
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 190(Typ)@3.6V
  • Maximum High Level Output Current (mA) 160
  • Maximum Low Level Output Current (mA) 160
  • Maximum On Resistance (Ohm) 3@2.7V
  • Maximum On Resistance Range (Ohm) 1 to 5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 247
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) 0.001@5.5V@-40C to 85C
  • Maximum Turn-Off Time (ns) 15@3.6V
  • Maximum Turn-On Time (ns) 20@3.6V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.8
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 1
  • Number of Inputs per Chip 1
  • Number of Outputs per Chip 1
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features N/A
  • Supplier Temperature Grade Extended
  • Switch Architecture SPST
  • Switch Control Logic Active High
  • Switch Normal Position NO
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) 0.00002@5.5V

Więcej informacji

Do pobrania Download
Main description Analog Switch Single SPST 5-Pin SC-70
