MAX4694ETE+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4694ETE+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4694ETE+

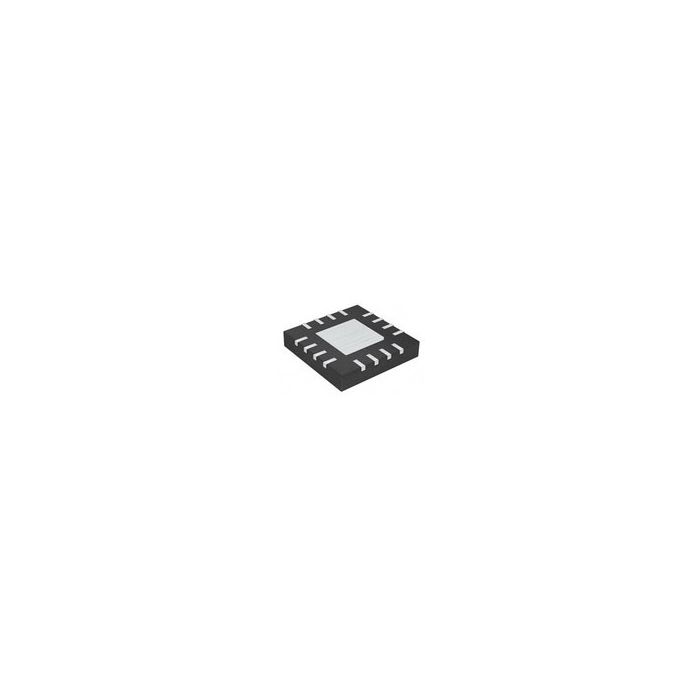

Analog Switch Quad SPDT 16-Pin TQFN EP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 23
- Inventory 3
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX4694ETE+%
- IntroductionDate May 01, 2001
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPDT
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±5.5
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) 20
- Maximum On Resistance (Ohm) 70@2.7V
- Maximum On Resistance Range (Ohm) 60 to 80
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 350@3.6V|140@5.5V|90@±5.5V
- Maximum Single Supply Voltage (V) 11
- Maximum Supply Current (mA) 0.0001@5.5V
- Maximum Turn-Off Time (ns) N/A
- Maximum Turn-On Time (ns) N/A
- Minimum Dual Supply Voltage (V) ±2
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 8
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±3|±5
- Typical Single Supply Voltage (V) 3|5|9
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPDT 16-Pin TQFN EP |
