MAX4639ETE+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4639ETE+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4639ETE+T

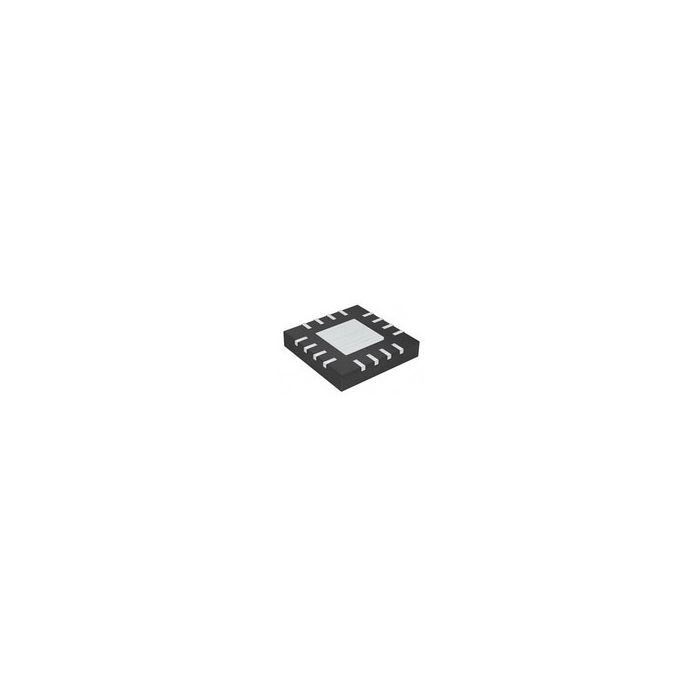

Analog Multiplexer Dual 4:1 16-Pin TQFN EP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 74
- PCNs 7
- MaskPart MAX4639ETE+%
- IntroductionDate Mar 01, 2002
Parametry
- Chip Enable Signals Yes
- Configuration Dual 4:1
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±2.75
- Maximum Frequency (25°C) @ Vcc (MHz) 85(Typ)@5V|85(Typ)@3.3V
- Maximum High Level Output Current (mA) 100
- Maximum Low Level Output Current (mA) 100
- Maximum On Resistance (Ohm) 6@3.3V
- Maximum On Resistance Range (Ohm) 5 to 10
- Maximum Power Dissipation (mW) 1349
- Maximum Propagation Delay Bus to Bus (ns) 18@5V|20@3.3V|20@±2.5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 0.001@5.5V@-40C to 85C
- Maximum Turn-Off Time (ns) 9@3.3V
- Maximum Turn-On Time (ns) 20@3.3V
- Minimum Dual Supply Voltage (V) ±0.9
- Minimum Single Supply Voltage (V) 1.8
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture 4:1
- Number of Channels per Chip 2
- Number of Inputs per Chip 8
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±2.5
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 0.000001@5.5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Dual 4:1 16-Pin TQFN EP T/R |
