MAX4612CUD+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4612CUD+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4612CUD+T

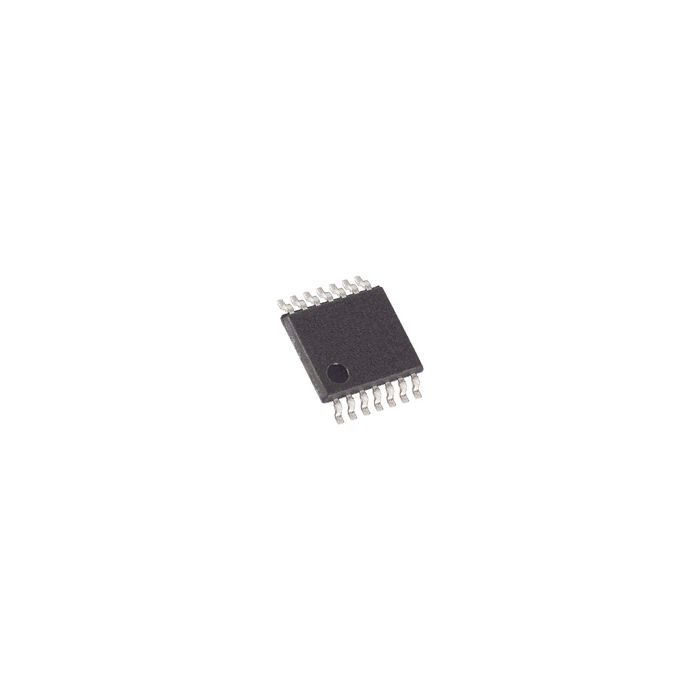

Analog Switch Quad SPST 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 37
- Inventory 2*
- PCNs 7
- MaskPart MAX4612CUD+%
- IntroductionDate Jan 01, 1999
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 300(Typ)@5V
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 360@2.7V
- Maximum On Resistance Range (Ohm) 250 to 400
- Maximum Power Dissipation (mW) 500
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 12
- Maximum Storage Temperature (°C) 160
- Maximum Supply Current (mA) 0.001@5V@0C to 70C
- Maximum Turn-Off Time (ns) 47@3V
- Maximum Turn-On Time (ns) 100@3V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade Commercial
- Switch Architecture SPST
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5|9
- Typical Supply Current (mA) 0.000001@5V@0C to 70C
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST 14-Pin TSSOP T/R |
