MAX4599EUT+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4599EUT+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4599EUT+T

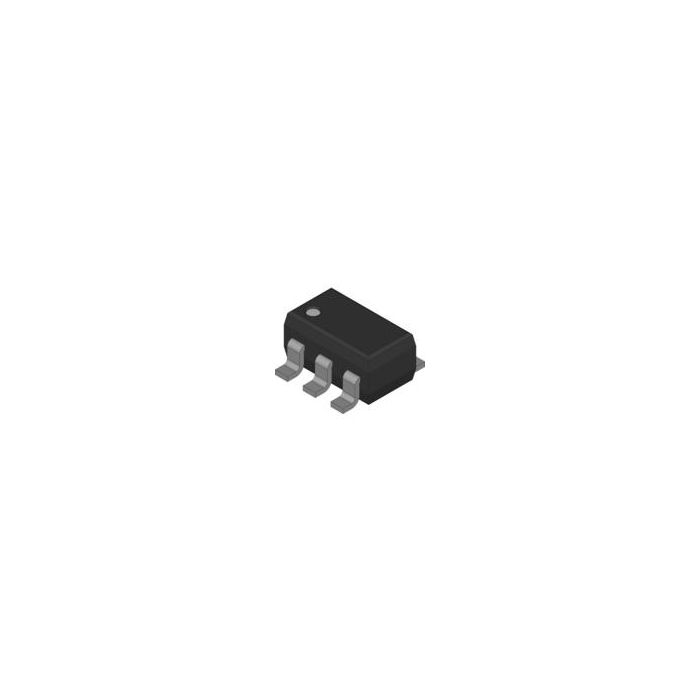

Analog Switch Single SPDT 6-Pin SOT-23 T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 326
- Inventory 3
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX4599EUT+%
- IntroductionDate Feb 01, 2000
Parametry
- Chip Enable Signals Yes
- Configuration Single SPDT
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 200(Typ)@5.5V
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) 20
- Maximum On Resistance (Ohm) 110@2.5V
- Maximum On Resistance Range (Ohm) 100 to 150
- Maximum Power Dissipation (mW) 571
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 0.001@5.5V@-40C to 85C
- Maximum Turn-Off Time (ns) 35@3.6V
- Maximum Turn-On Time (ns) 50@2.5V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture N/R
- Number of Channels per Chip 1
- Number of Inputs per Chip 1
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 0.000001@5.5V@-40C to 85C
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Single SPDT 6-Pin SOT-23 T/R |
