MAX4586EUB+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4586EUB+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4586EUB+

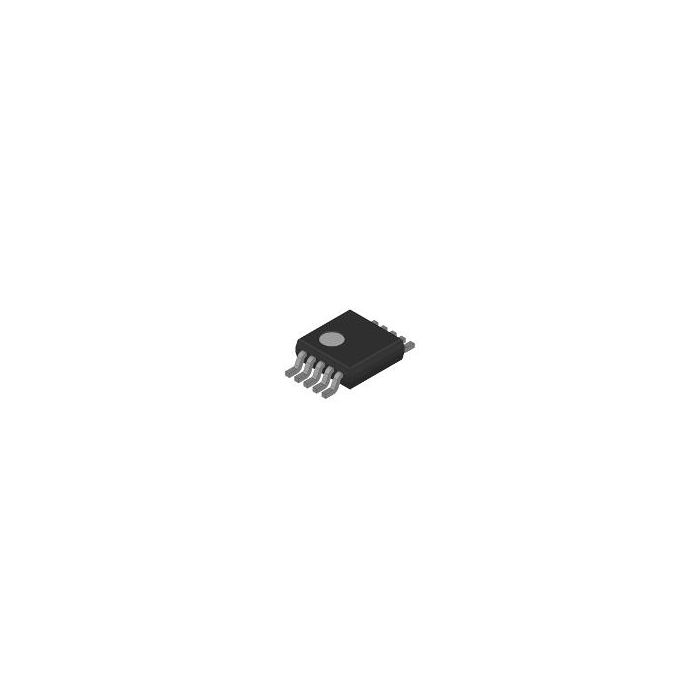

Analog Multiplexer Single 4:1 10-Pin uMAX
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 3
- PCNs 7
- GIDEP-Alerts 1
- MaskPart MAX4586EUB+%
- IntroductionDate Aug 01, 1999
Parametry
- Chip Enable Signals No
- Configuration Single 4:1
- Function Video Multiplexer
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 200(Typ)@3V|300(Typ)@5V
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) 20
- Maximum On Resistance (Ohm) 110@2.7V
- Maximum On Resistance Range (Ohm) 100 to 150
- Maximum Power Dissipation (mW) 330
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 0.001@5V@-40C to 85C
- Maximum Turn-Off Time (ns) 350@3V
- Maximum Turn-On Time (ns) 800@3V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Multiplexer Architecture 4:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 4
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 0.005@5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 4:1 10-Pin uMAX |
