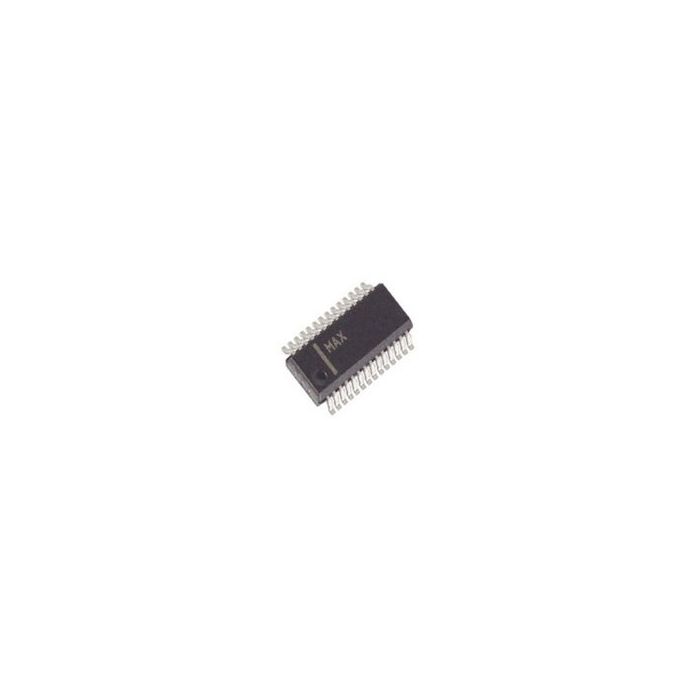

MAX4574EEI+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4574EEI+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4574EEI+

Analog Switch Dual SPST/Hex SPDT 28-Pin QSOP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 2
  • PCNs 8
  • MaskPart MAX4574EEI+%
  • IntroductionDate Apr 01, 1999

Parametry

  • Chip Enable Signals Yes
  • Configuration Dual SPST/Hex SPDT
  • Function Video Switch
  • Input Signal Type Single
  • Latch-Up Proof No
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 150(Typ)@5V|150(Typ)@3V
  • Maximum High Level Output Current (mA) 10
  • Maximum Low Level Output Current (mA) 10
  • Maximum On Resistance (Ohm) 90@2.7V
  • Maximum On Resistance Range (Ohm) 80 to 100
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 860
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 5.25
  • Maximum Supply Current (mA) 0.01@5V@-40C to 85C
  • Maximum Turn-Off Time (ns) 300@3V
  • Maximum Turn-On Time (ns) 900@3V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 2|6
  • Number of Inputs per Chip 14
  • Number of Outputs per Chip 14
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Extended
  • Switch Architecture SPST/SPDT
  • Switch Control Logic Active Low/High
  • Switch Normal Position NO/NC
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) 0.006@5V@-40C to 85C

Więcej informacji

Do pobrania Download
Main description Analog Switch Dual SPST/Hex SPDT 28-Pin QSOP
