MAX4571CWI+
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Eleven SPST 28-Pin SOIC W |

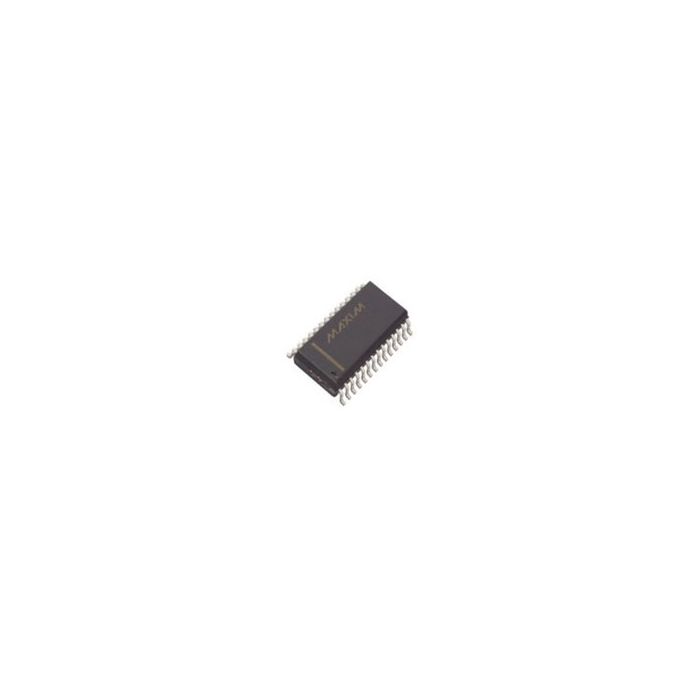

Analog Switch Eleven SPST 28-Pin SOIC W
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 1
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX4571CWI+%
- IntroductionDate Apr 01, 1999
Parametry
- Chip Enable Signals Yes
- Configuration Eleven SPST
- Function Video Switch
- Input Signal Type Single
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 150(Typ)@5V|150(Typ)@3V
- Maximum High Level Output Current (mA) 10
- Maximum Low Level Output Current (mA) 10
- Maximum On Resistance (Ohm) 90@2.7V
- Maximum On Resistance Range (Ohm) 80 to 100
- Maximum Power Dissipation (mW) 1000
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 5.25
- Maximum Supply Current (mA) 0.01@5V@0C to 70C
- Maximum Turn-Off Time (ns) 300@3V
- Maximum Turn-On Time (ns) 900@3V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Multiplexer Architecture N/R
- Number of Channels per Chip 11
- Number of Inputs per Chip 11
- Number of Outputs per Chip 11
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Commercial
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 0.006@5V@0C to 70C
