MAX4559CSE+
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Dual 4:1 16-Pin SOIC N |

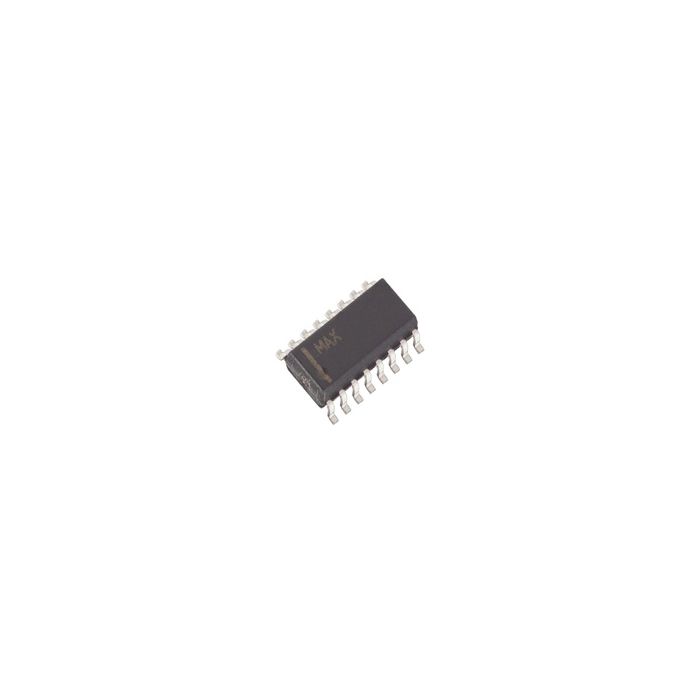

Analog Multiplexer Dual 4:1 16-Pin SOIC N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 118
- Inventory 2
- PCNs 7
- MaskPart MAX4559CSE+%
- IntroductionDate Apr 01, 1999
Parametry
- Chip Enable Signals Yes
- Configuration Dual 4:1
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±6
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 10
- Maximum Low Level Output Current (mA) 10
- Maximum On Resistance (Ohm) 400@2.7V
- Maximum On Resistance Range (Ohm) 400 to 1000
- Maximum Power Dissipation (mW) 696
- Maximum Propagation Delay Bus to Bus (ns) 150@±5.5V|250@5.5V|350@3.6V
- Maximum Single Supply Voltage (V) 12
- Maximum Supply Current (mA) 0.001@5.5V
- Maximum Turn-Off Time (ns) 250@3.6V
- Maximum Turn-On Time (ns) 350@3.6V
- Minimum Dual Supply Voltage (V) ±2
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture 4:1
- Number of Channels per Chip 2
- Number of Inputs per Chip 8
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade Commercial
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±3|±5
- Typical Single Supply Voltage (V) 3|5|9
- Typical Supply Current (mA) 0.0005@3.6V
