MAX4555CSE+
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST 16-Pin SOIC N |

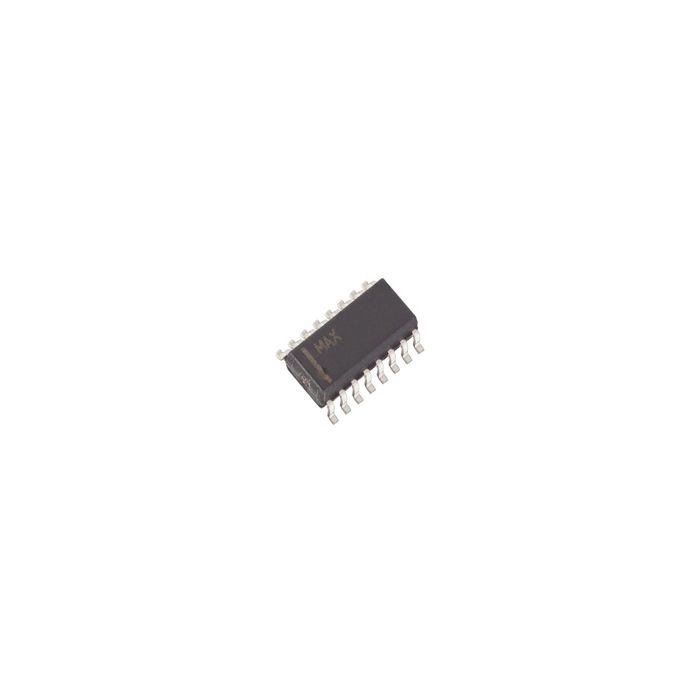

Analog Switch Quad SPST 16-Pin SOIC N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 155
- Inventory 1
- PCNs 7
- MaskPart MAX4555CSE+%
- IntroductionDate Apr 01, 1998
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) 30
- Maximum On Resistance (Ohm) 30@±15V
- Maximum On Resistance Range (Ohm) 25 to 35
- Maximum Power Dissipation (mW) 696
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 40
- Maximum Supply Current (mA) ±0.001@±16.5V
- Maximum Turn-Off Time (ns) 275@±15V
- Maximum Turn-On Time (ns) 275@±15V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 9
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade Commercial
- Switch Architecture SPST
- Switch Control Logic Active Low
- Switch Normal Position NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15|±18
- Typical Single Supply Voltage (V) 12|15|18|24|28
- Typical Supply Current (mA) ±0.000001@±16.5V
