MAX4534CSD+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4534CSD+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4534CSD+

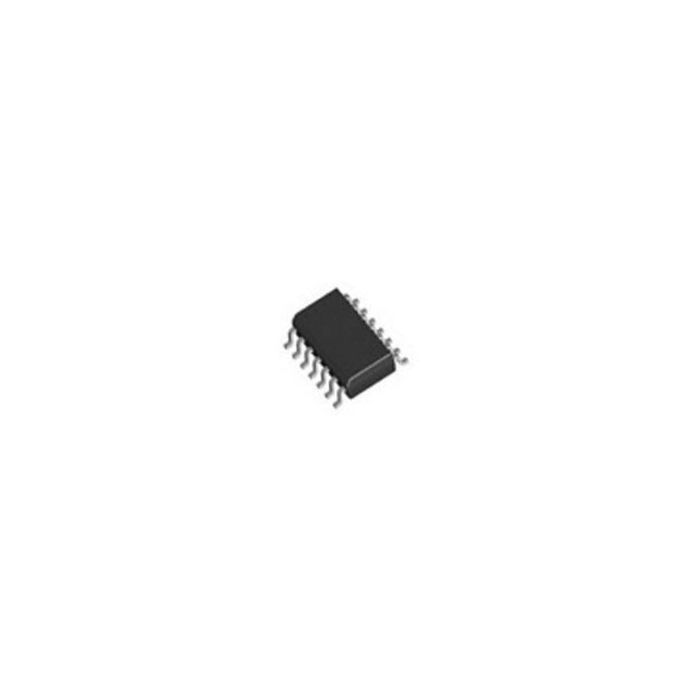

Analog Multiplexer Single 4:1 14-Pin SOIC N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 4
- PCNs 8
- MaskPart MAX4534CSD+%
- IntroductionDate Jan 01, 2000
Parametry
- Chip Enable Signals Yes
- Configuration Single 4:1
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) 30
- Maximum On Resistance (Ohm) 950@12V
- Maximum On Resistance Range (Ohm) 400 to 1000
- Maximum Power Dissipation (mW) 640
- Maximum Propagation Delay Bus to Bus (ns) 350@±15V
- Maximum Single Supply Voltage (V) 36
- Maximum Supply Current (mA) 0.4@15V/-0.2@-15V
- Maximum Turn-Off Time (ns) 250@12V
- Maximum Turn-On Time (ns) 500@12V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 9
- Multiplexer Architecture 4:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 4
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make|Fault Protected
- Supplier Temperature Grade Commercial
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15|±18
- Typical Single Supply Voltage (V) 12|15|18|24|28
- Typical Supply Current (mA) 0.225@15V/-0.125@-15V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 4:1 14-Pin SOIC N |
