MAX4527ESA+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4527ESA+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4527ESA+

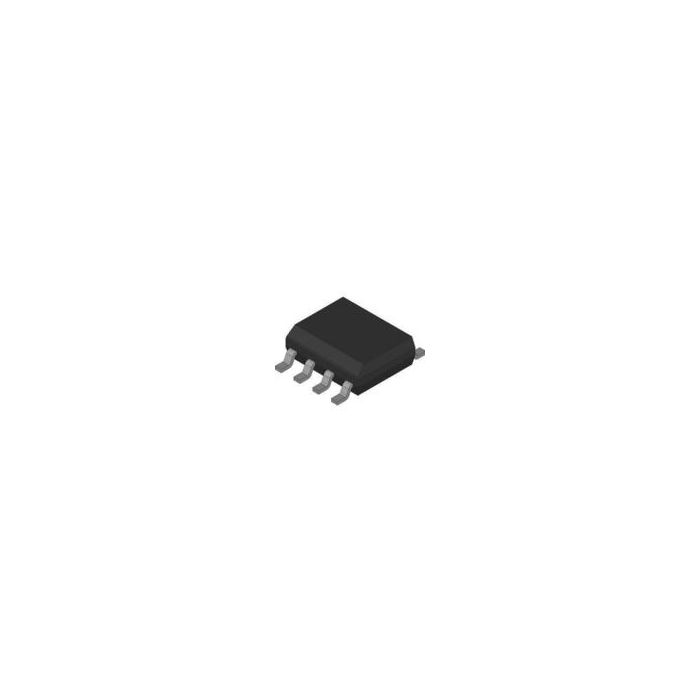

Analog Switch Single DPDT 8-Pin SOIC N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 2
- PCNs 9
- MaskPart MAX4527ESA+%
- IntroductionDate Dec 01, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Single DPDT
- Function General
- Input Signal Type Differential
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) 20
- Maximum On Resistance (Ohm) 175@±15V
- Maximum On Resistance Range (Ohm) 150 to 250
- Maximum Power Dissipation (mW) 471
- Maximum Propagation Delay Bus to Bus (ns) 200@±15V
- Maximum Single Supply Voltage (V) 36
- Maximum Supply Current (mA) ±0.001@±16.5V
- Maximum Turn-Off Time (ns) N/A
- Maximum Turn-On Time (ns) N/A
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 4.5
- Multiplexer Architecture N/R
- Number of Channels per Chip 1
- Number of Inputs per Chip 2
- Number of Outputs per Chip 2
- Output Signal Type Differential
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture DPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15|±18
- Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
- Typical Supply Current (mA) ±0.00005@±16.5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Single DPDT 8-Pin SOIC N |
