MAX4501EXK+
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Single SPST 5-Pin SC-70 |

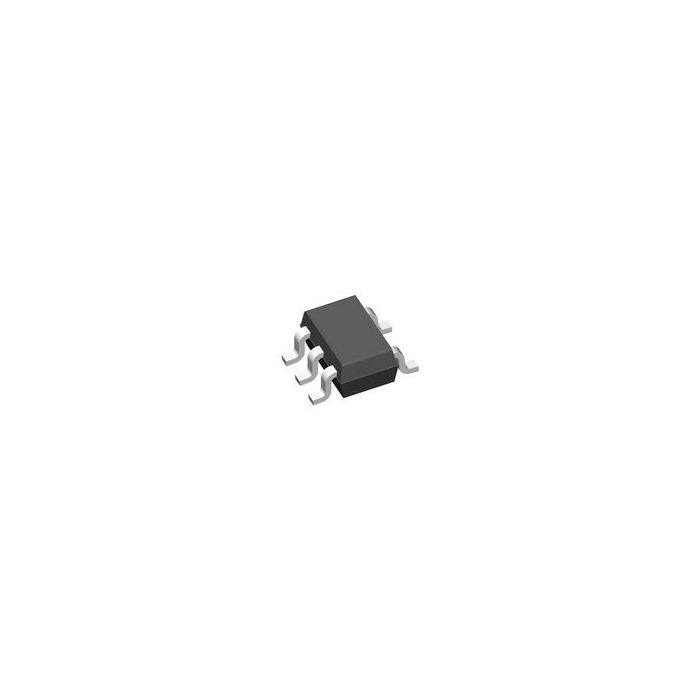

Analog Switch Single SPST 5-Pin SC-70
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 78
- Inventory 4*
- PCNs 7
- MaskPart MAX4501EXK+%
- IntroductionDate Nov 01, 1999
Parametry
- Chip Enable Signals Yes
- Configuration Single SPST
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 10
- Maximum Low Level Output Current (mA) 10
- Maximum On Resistance (Ohm) 600@3.6V
- Maximum On Resistance Range (Ohm) 400 to 1000
- Maximum Power Dissipation (mW) 200
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 12
- Maximum Supply Current (mA) 0.001@5.5V
- Maximum Turn-Off Time (ns) 125@3.6V
- Maximum Turn-On Time (ns) 300@3.6V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture N/R
- Number of Channels per Chip 1
- Number of Inputs per Chip 1
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade Extended
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5|9
- Typical Supply Current (mA) N/A
