MAX4362EUB+T
Do pobrania | Download |
---|---|
Main description | ADSL Driver and Receiver Single 190MHz 10-Pin uMAX T/R |

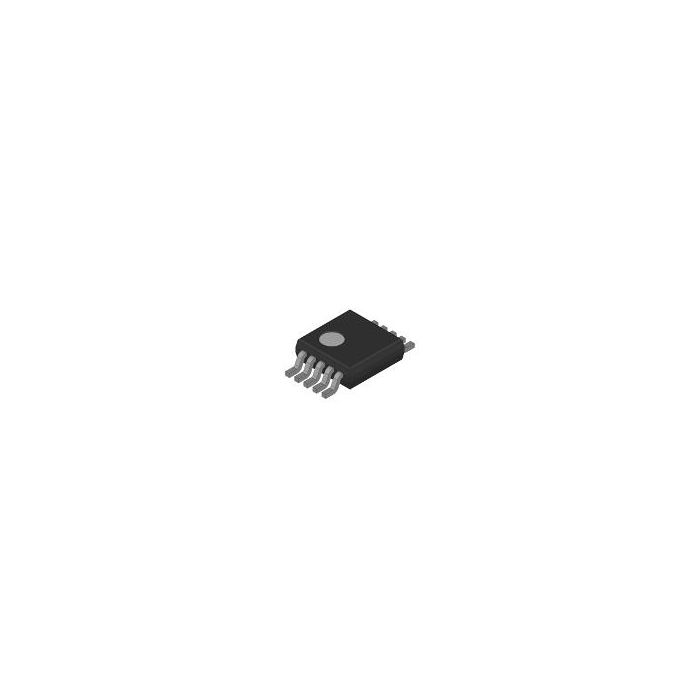

ADSL Driver and Receiver Single 190MHz 10-Pin uMAX T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 7
- Inventory 1
- PCNs 7
- GIDEP-Alerts 1
- MaskPart MAX4362EUB+%
- IntroductionDate Jan 01, 2002
Parametry
- Amplifier Topology General Purpose Amplifier
- JTAG Support No
- Maximum Dual Supply Voltage (V) N/R
- Maximum High Drive Current (mA) N/A
- Maximum Power Dissipation (mW) 444
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (A) 0.033
- Minimum CMRR (dB) 70
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.5
- Mode of Oscillation N/A
- Number of Drivers/Receivers 1
- Output Impedance (Ohm) 1800
- Output Type Differential
- Power Supply Type Single
- Process Technology Bipolar
- Supplier Temperature Grade Extended
- Type Driver and Receiver
- Typical 3dB Bandwidth (MHz) N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) 190
- Typical Single Supply Voltage (V) 5
- Typical Slew Rate (V/us) 160
- Typical Total Harmonic Distortion (dB) N/A
