MAX4066ACEE+T
| Do pobrania | Download |
|---|---|

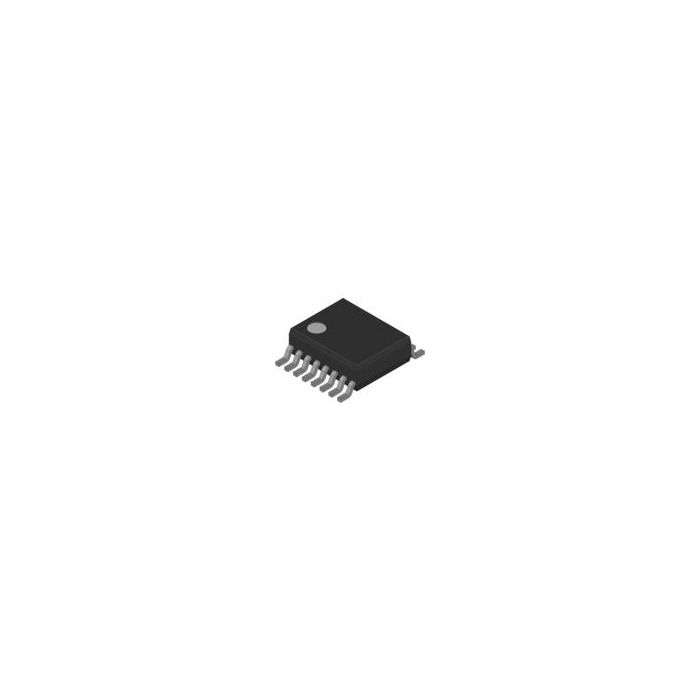

| Main description | Analog Switch Quad SPST 16-Pin QSOP T/R |
Analog Switch Quad SPST 16-Pin QSOP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 285
- Inventory 2*
- PCNs 8
- MaskPart MAX4066ACEE+%
- IntroductionDate Mar 01, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 100(Typ)@12V|100(Typ)@5V
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 170@3V
- Maximum On Resistance Range (Ohm) 150 to 250
- Maximum Power Dissipation (mW) 762
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 16
- Maximum Supply Current (mA) 0.001@5.5V@0C to 70C
- Maximum Turn-Off Time (ns) 150@3V
- Maximum Turn-On Time (ns) 185@3V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade Commercial
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5|12
- Typical Supply Current (mA) 0.000001@12V@0C to 70C
