MAX395CNG-T

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX395CNG-T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX395CNG-T

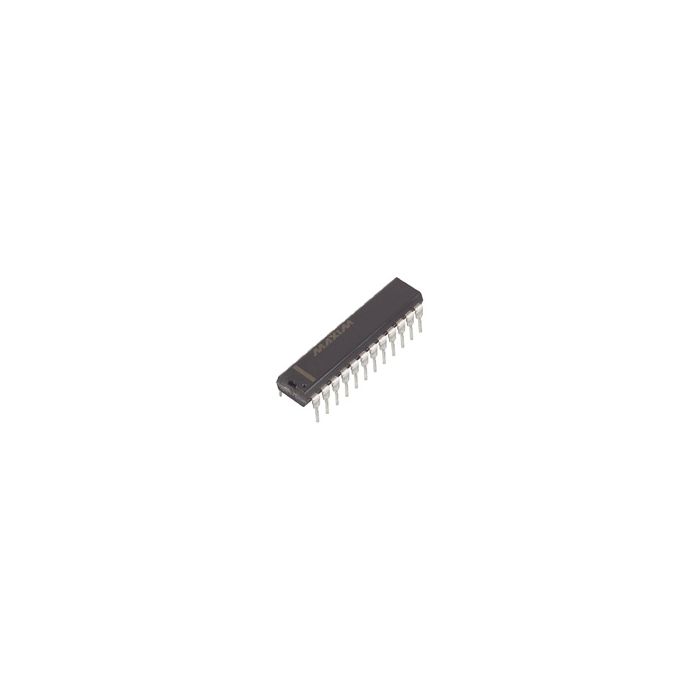

Analog Switch Octal SPST 24-Pin PDIP N T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 20
  • Inventory 4*
  • PCNs 7
  • MaskPart MAX395CNG%
  • IntroductionDate Nov 01, 1995

Parametry

  • Chip Enable Signals Yes
  • Configuration Octal SPST
  • Function General
  • Input Signal Type Single
  • Logic Family N/A
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) ±8
  • Maximum Frequency (25°C) @ Vcc (MHz) N/A
  • Maximum High Level Output Current (mA) 30
  • Maximum Low Level Output Current (mA) 30
  • Maximum On Resistance (Ohm) 500@3.6V
  • Maximum On Resistance Range (Ohm) 400 to 1000
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 1067
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 16
  • Maximum Supply Current (mA) 0.02@5.5V
  • Maximum Turn-Off Time (ns) 400@5.5V
  • Maximum Turn-On Time (ns) 600@3.6V
  • Minimum Dual Supply Voltage (V) ±3
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) 2.7
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 8
  • Number of Inputs per Chip 8
  • Number of Outputs per Chip 8
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single|Dual
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Commercial
  • Switch Architecture SPST
  • Switch Control Logic Active High
  • Switch Normal Position NO
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) ±5
  • Typical Single Supply Voltage (V) 3|5|9|12|15
  • Typical Supply Current (mA) 0.007@5.5V

Więcej informacji

Do pobrania Download
Main description Analog Switch Octal SPST 24-Pin PDIP N T/R
