MAX3800UTJ+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX3800UTJ+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX3800UTJ+T

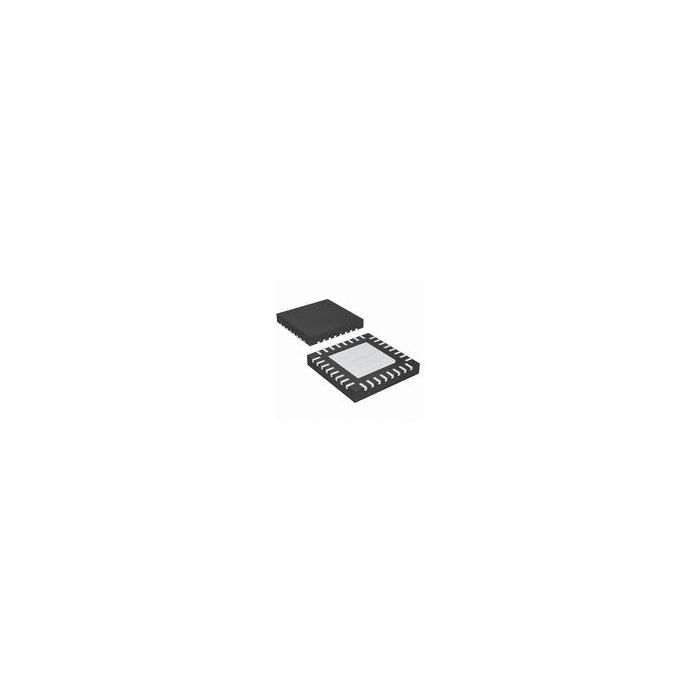

Single Transmitter 32-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • Inventory 2*
  • PCNs 7
  • MaskPart MAX3800UTJ+%
  • IntroductionDate Nov 01, 2001

Parametry

  • Channel Operating Mode N/A
  • Charge Pump No
  • Data Rate 3.2Gbps
  • Data Transmission Topology N/A
  • Driving Mode No
  • External Capacitor Capacitance (uF) N/R
  • Fail Safe N/A
  • Function Line Transmitter
  • Input Logic Level N/A
  • Interface Standards N/A
  • Isolation No
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Single Supply Voltage (V) 3.46
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 85
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) 3.14
  • Minimum Storage Temperature (°C) -55
  • Number of Drivers per Line N/A
  • Number of External Capacitors N/R
  • Number of Receiver Enables N/R
  • Number of Receivers N/R
  • Number of Receivers per Line N/R
  • Number of Transceivers N/R
  • Number of Transmitter Enables 0
  • Number of Transmitters 1
  • Output Logic Level N/A
  • Power Down Mode N/A
  • Power Supply Type Single
  • Receiver Communication Type N/A
  • Receiver Signal Type N/R
  • Supplier Temperature Grade Commercial
  • Transmitter Communication Type N/A
  • Transmitter Signal Type N/A
  • Typical Dual Supply Voltage (V) N/R
  • Typical Shutdown Current (uA) N/A
  • Typical Single Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Single Transmitter 32-Pin TQFN EP T/R
