MAX335EUG+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX335EUG+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX335EUG+T

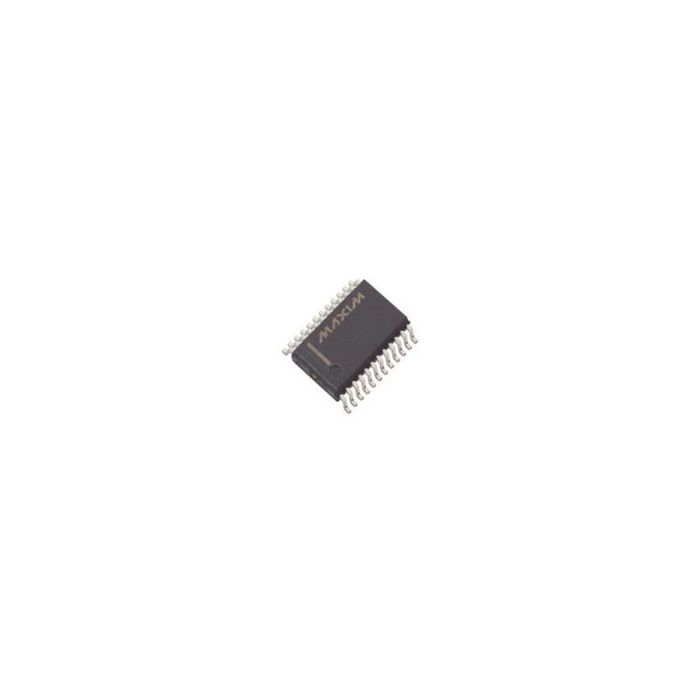

Analog Switch Octal SPST 24-Pin TSSOP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 1
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX335EUG+%
- IntroductionDate Jul 01, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Octal SPST
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 150@±15V
- Maximum On Resistance Range (Ohm) 150 to 250
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) 0.3@15V/-0.01@-15V
- Maximum Turn-Off Time (ns) 400@±15V
- Maximum Turn-On Time (ns) 400@±15V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) N/R
- Multiplexer Architecture N/R
- Number of Channels per Chip 8
- Number of Inputs per Chip 8
- Number of Outputs per Chip 8
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15|±18
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) 0.15@15V/-0.00001@-15V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Octal SPST 24-Pin TSSOP T/R |
