MAX334EWE+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX334EWE+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX334EWE+

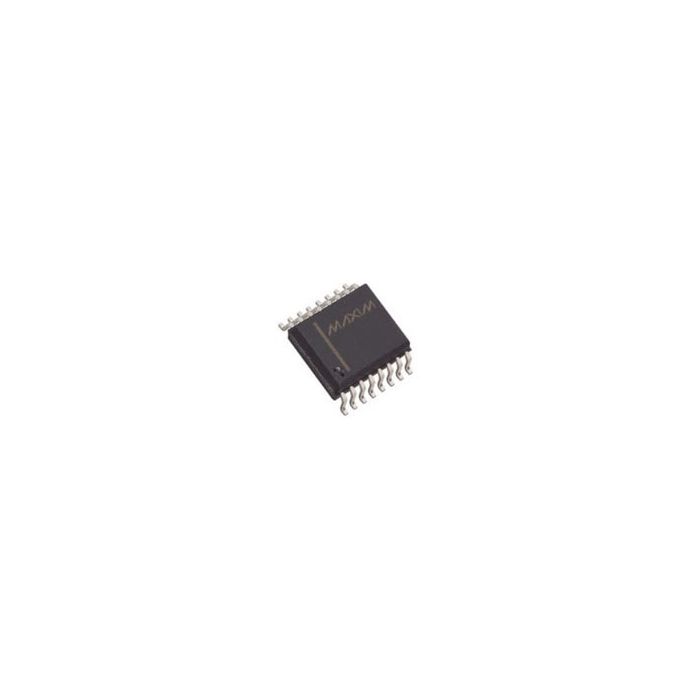

Analog Switch Quad SPST 16-Pin SOIC W
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 75
- Inventory 2
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX334EWE+%
- IntroductionDate Dec 07, 1995
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±15
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 50@±15V
- Maximum On Resistance Range (Ohm) 45 to 60
- Maximum Power Dissipation (mW) 750
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 30
- Maximum Supply Current (mA) 10@15V/-6@-15V@-40C to 85C
- Maximum Turn-Off Time (ns) 150(Typ)@±15V
- Maximum Turn-On Time (ns) 100@±15V
- Minimum Dual Supply Voltage (V) ±5
- Minimum Single Supply Voltage (V) 5
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade N/A
- Switch Architecture SPST
- Switch Control Logic Active Low
- Switch Normal Position NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±9|±12
- Typical Single Supply Voltage (V) 9|12|15|18|24|28
- Typical Supply Current (mA) 4.5@15V/-3.5@-15V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST 16-Pin SOIC W |
