MAX333EPP+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX333EPP+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX333EPP+

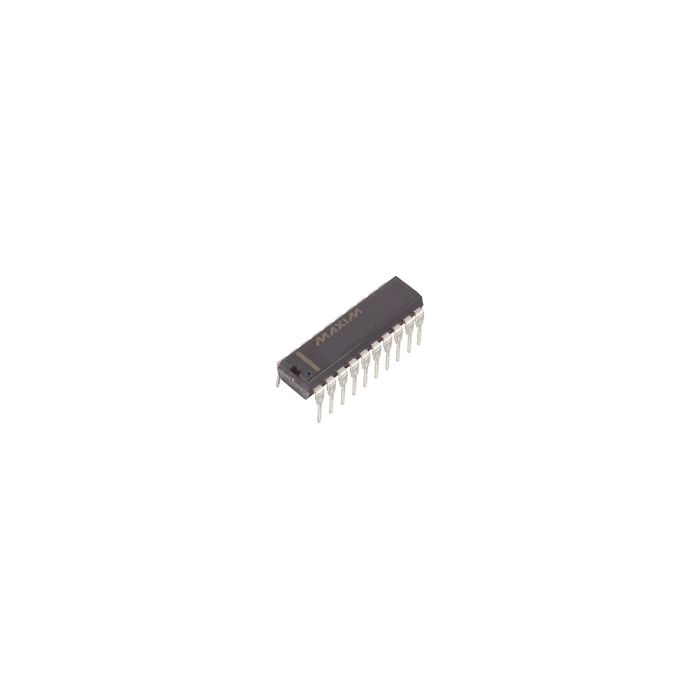

Analog Switch Quad SPDT 20-Pin PDIP N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 36
- Inventory 2
- PCNs 7
- MaskPart MAX333EPP+%
- IntroductionDate Dec 07, 1995
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPDT
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±18
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 350@12V
- Maximum On Resistance Range (Ohm) 250 to 400
- Maximum Power Dissipation (mW) 600
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 30
- Maximum Supply Current (mA) ±0.25@±15V
- Maximum Turn-Off Time (ns) 500@±15V
- Maximum Turn-On Time (ns) 1000@±15V
- Minimum Dual Supply Voltage (V) ±5
- Minimum Single Supply Voltage (V) 10
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 8
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±9|±12|±15
- Typical Single Supply Voltage (V) 12|15|18|24|28
- Typical Supply Current (mA) 0.13@15V/-0.01@-15V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPDT 20-Pin PDIP N |
