MAX3284EAUT+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX3284EAUT+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX3284EAUT+T

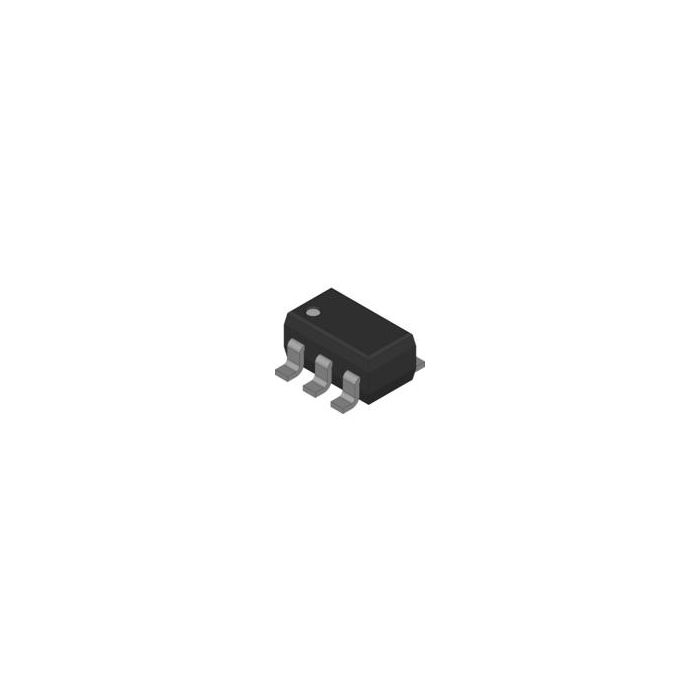

Single Receiver RS-422/RS-485 Automotive 6-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 1
  • Inventory 4
  • PCNs 10
  • GIDEP-Alerts 1
  • MaskPart MAX3284EAUT+%
  • IntroductionDate Jan 01, 2002

Parametry

  • Channel Operating Mode N/A
  • Charge Pump No
  • Data Rate 52Mbps(Min)
  • Data Transmission Topology Multidrop|Multipoint
  • Driving Mode 3-State
  • External Capacitor Capacitance (uF) N/R
  • Fail Safe Open/Short
  • Function Line Receiver
  • Input Logic Level CMOS
  • Interface Standards RS-422|RS-485
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 15
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers per Line N/R
  • Number of External Capacitors N/R
  • Number of Receiver Enables 0
  • Number of Receivers 1
  • Number of Receivers per Line 10@RS-422|128@RS-485
  • Number of Transceivers N/R
  • Number of Transmitter Enables N/R
  • Number of Transmitters N/R
  • Output Logic Level CMOS
  • Power Down Mode N/A
  • Power Supply Type Single
  • Receiver Communication Type RS-422|RS-485
  • Receiver Signal Type Differential
  • Supplier Temperature Grade Automotive
  • Transmitter Communication Type N/A
  • Transmitter Signal Type N/R
  • Typical Dual Supply Voltage (V) N/R
  • Typical Shutdown Current (uA) N/A
  • Typical Single Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description Single Receiver RS-422/RS-485 Automotive 6-Pin SOT-23 T/R
