MAX3172EAI

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX3172EAI_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX3172EAI

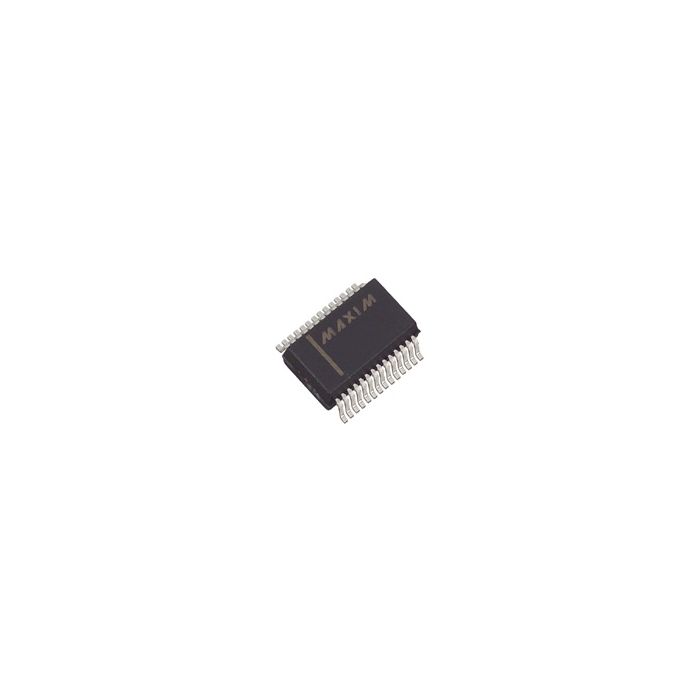

Single Transmitter/Receiver RS-232/RS-423/RS-449/RS-485/RS-530 28-Pin SSOP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 1*
  • PCNs 7
  • MaskPart MAX3172EAI%
  • IntroductionDate Jan 01, 2001

Parametry

  • Data Rate 64Kbps
  • Data Transmission Topology Point-to-Point|Multidrop|Multipoint
  • Driving Mode 3-State
  • Function Line Transceiver
  • Interface Standards RS-232|RS-449|RS-485|RS-530|RS-530-A|V.10|V.11|V.21|V.28|V.35
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Single Supply Voltage (V) 3.465
  • Maximum Supply Current (mA) 0.75
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3.135
  • Number of Drivers per Line 1@RS-232|1@RS-449|1@RS-530|32@RS-485
  • Number of Receiver Enables 0
  • Number of Receivers 1
  • Number of Receivers per Line 1@RS-232|10@RS-449|32@RS-485|10@RS-530
  • Number of Transceivers 1
  • Number of Transmitter Enables 0
  • Number of Transmitters 1
  • Power Supply Type Single
  • Receiver Communication Type RS-232|RS-423|RS-449|RS-485|RS-530
  • Receiver Signal Type Differential
  • Supplier Temperature Grade Extended
  • Transmitter Communication Type RS-232|RS-423|RS-449|RS-485|RS-530
  • Transmitter Signal Type Differential
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Single Transmitter/Receiver RS-232/RS-423/RS-449/RS-485/RS-530 28-Pin SSOP
