MAX308ESE+T
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 8:1 16-Pin SOIC N T/R |

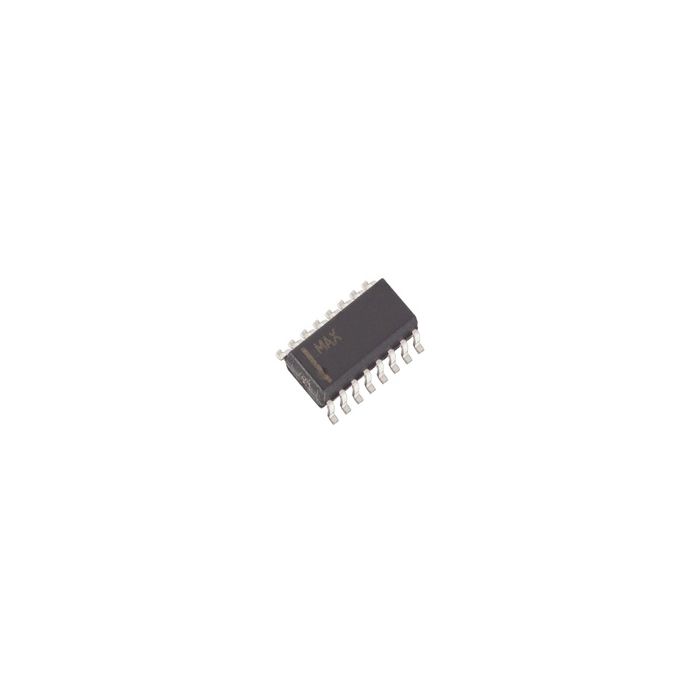

Analog Multiplexer Single 8:1 16-Pin SOIC N T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 155
- Inventory 1
- PCNs 8
- MaskPart MAX308ESE+%
- IntroductionDate Jul 01, 1994
Parametry
- Chip Enable Signals Yes
- Configuration Single 8:1
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 175@12V
- Maximum On Resistance Range (Ohm) 150 to 250
- Maximum Power Dissipation (mW) 696
- Maximum Propagation Delay Bus to Bus (ns) 175@±15V|450@12V
- Maximum Single Supply Voltage (V) 30
- Maximum Supply Current (mA) 0.5@15V/-0.001@-15V
- Maximum Turn-Off Time (ns) 300@12V
- Maximum Turn-On Time (ns) 600@12V
- Minimum Dual Supply Voltage (V) ±5
- Minimum Single Supply Voltage (V) 5
- Multiplexer Architecture 8:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 8
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±9|±12|±15|±18
- Typical Single Supply Voltage (V) 9|12|15|18|24|28
- Typical Supply Current (mA) 0.075@±15V
