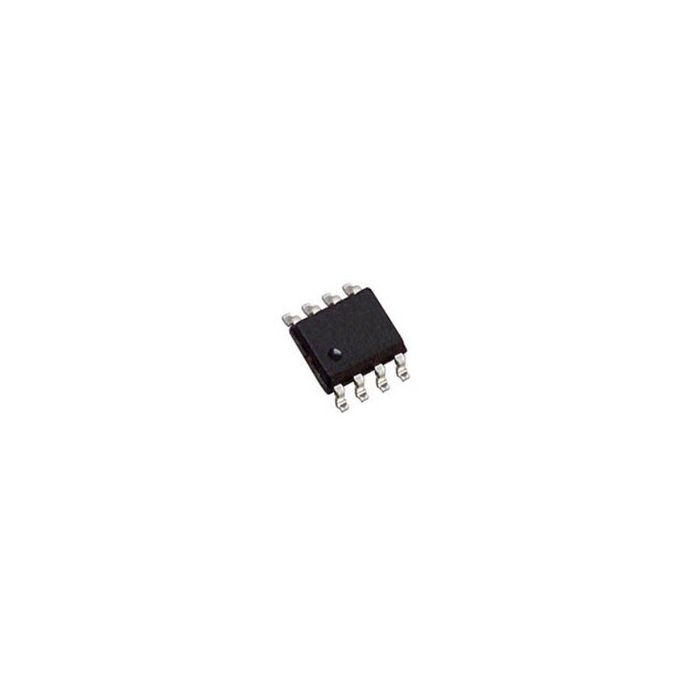

RS-232/RS-485 8-Pin SOIC N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 18
- Inventory 2
- PCNs 11
- MaskPart MAX253ESA%
- IntroductionDate Jan 01, 1994
Parametry
- Charge Pump No
- Data Rate 2.5Mbps
- Data Transmission Topology Point-to-Point|Multipoint
- Driving Mode N/A
- External Capacitor Capacitance (uF) 0.1
- Fail Safe N/A
- Function Line Transmitter
- Input Logic Level CMOS
- Interface Standards RS-232|RS-485
- Isolation Yes
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 160
- Maximum Supply Current (mA) 5
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.5
- Minimum Storage Temperature (°C) -65
- Number of Drivers per Line N/A
- Number of External Capacitors 1
- Number of Receiver Enables N/R
- Number of Receivers N/R
- Number of Receivers per Line N/R
- Number of Transceivers N/A
- Number of Transmitter Enables N/A
- Number of Transmitters N/A
- Output Logic Level CMOS
- Power Down Mode Shutdown
- Power Supply Type Single
- Receiver Communication Type N/R
- Receiver Signal Type N/R
- Supplier Temperature Grade N/A
- Transmitter Communication Type RS-232|RS-485
- Transmitter Signal Type Single-Ended|Differential
- Typical Dual Supply Voltage (V) N/R
- Typical Shutdown Current (uA) N/A
- Typical Single Supply Voltage (V) 5
