MAX206EENG-T
| Do pobrania | Download |
|---|---|
| Main description | Quad Transmitter Triple Receiver RS-232 24-Pin PDIP N T/R |

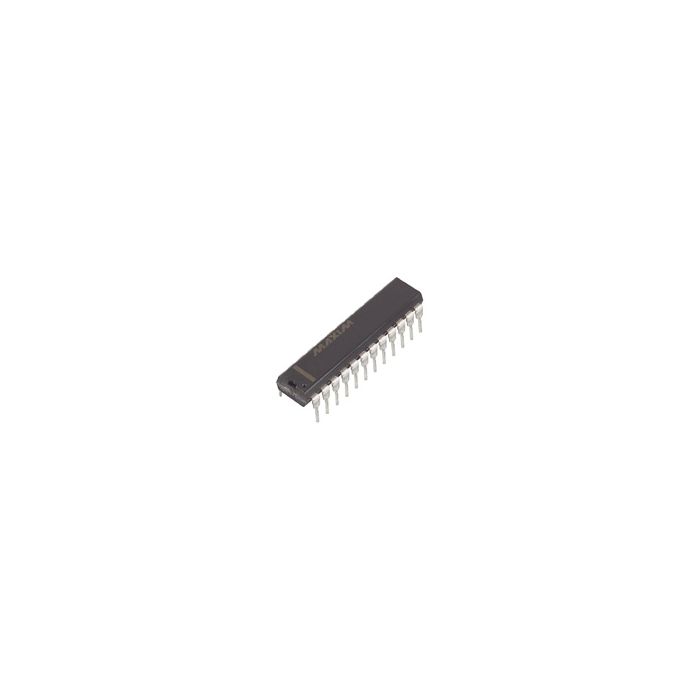

Quad Transmitter Triple Receiver RS-232 24-Pin PDIP N T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 155
- Inventory 1*
- PCNs 7
- MaskPart MAX206EENG%
- IntroductionDate May 01, 1996
Parametry
- Charge Pump Yes
- Data Rate 120Kbps(Min)
- Data Transmission Topology Point-to-Point
- Driving Mode 3-State
- External Capacitor Capacitance (uF) 0.1
- Fail Safe N/A
- Function Line Transceiver
- Input Logic Level TTL|CMOS
- Interface Standards EIA/TIA-232-E|RS-232|V.28
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 165
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.5
- Minimum Storage Temperature (°C) -65
- Number of Drivers per Line 1
- Number of External Capacitors 4
- Number of Receiver Enables 1
- Number of Receivers 3
- Number of Receivers per Line 1
- Number of Transceivers 1
- Number of Transmitter Enables 0
- Number of Transmitters 4
- Output Logic Level TTL|CMOS
- Power Down Mode Shutdown
- Power Supply Type Single
- Receiver Communication Type RS-232
- Receiver Signal Type Single-Ended
- Supplier Temperature Grade Extended
- Transmitter Communication Type RS-232
- Transmitter Signal Type Single-Ended
- Typical Dual Supply Voltage (V) N/R
- Typical Shutdown Current (uA) 1
- Typical Single Supply Voltage (V) 5
