MAX201CWE+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX201CWE+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX201CWE+

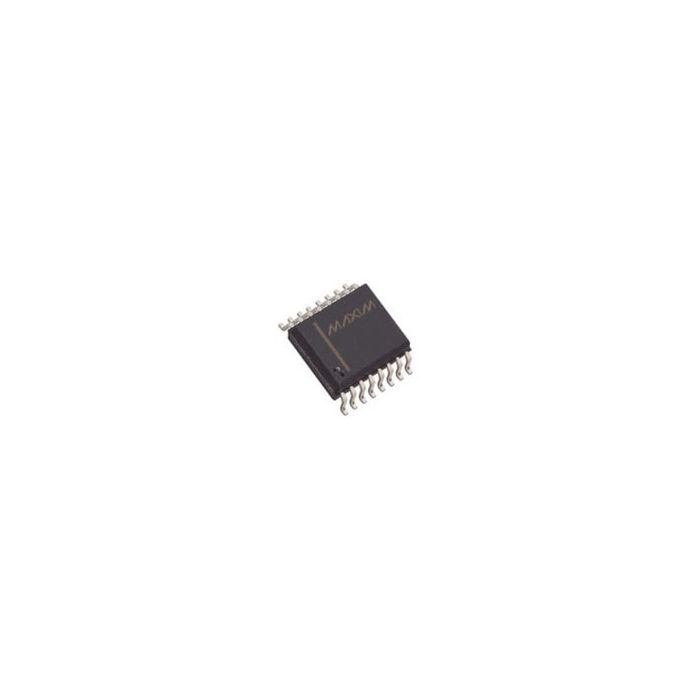

Dual Transmitter/Receiver RS-232 16-Pin SOIC W

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 122
  • Inventory 3
  • PCNs 9
  • GIDEP-Alerts 1
  • MaskPart MAX201CWE+%
  • IntroductionDate Dec 01, 1996

Parametry

  • Channel Operating Mode N/A
  • Charge Pump Yes
  • Data Rate 120Kbps(Min)
  • Data Transmission Topology Point-to-Point
  • Driving Mode No
  • External Capacitor Capacitance (uF) 0.1
  • Fail Safe N/A
  • Function Line Transceiver
  • Input Logic Level TTL|CMOS
  • Interface Standards EIA/TIA-232-E|RS-232|V.28
  • Maximum Dual Supply Voltage (V) 5.5|13.2
  • Maximum Operating Temperature (°C) 70
  • Maximum Single Supply Voltage (V) N/R
  • Maximum Storage Temperature (°C) 160
  • Maximum Supply Current (mA) N/A
  • Minimum Dual Supply Voltage (V) 4.5|9
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) N/R
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers per Line 1
  • Number of External Capacitors 2
  • Number of Receiver Enables 0
  • Number of Receivers 2
  • Number of Receivers per Line 1
  • Number of Transceivers 1
  • Number of Transmitter Enables 0
  • Number of Transmitters 2
  • Output Logic Level TTL|CMOS
  • Power Down Mode N/A
  • Power Supply Type Dual
  • Receiver Communication Type RS-232
  • Receiver Signal Type Single-Ended
  • Supplier Temperature Grade Commercial
  • Transmitter Communication Type RS-232
  • Transmitter Signal Type Single-Ended
  • Typical Dual Supply Voltage (V) 5|12
  • Typical Shutdown Current (uA) N/A
  • Typical Single Supply Voltage (V) N/R

Więcej informacji

Do pobrania Download
Main description Dual Transmitter/Receiver RS-232 16-Pin SOIC W
