MAX195BCWE+T
| Do pobrania | Download |
|---|---|
| Main description | 1-Channel Single ADC SAR 85ksps 16-bit Serial 16-Pin SOIC W T/R |

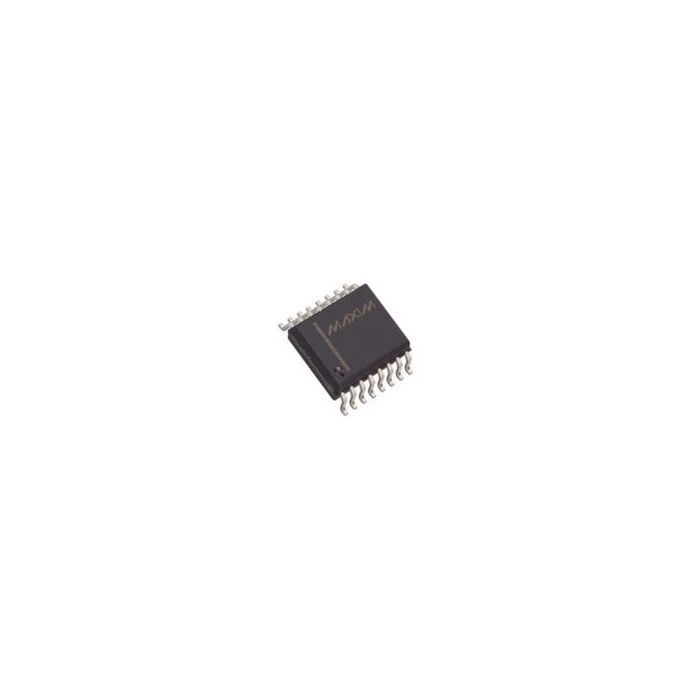

1-Channel Single ADC SAR 85ksps 16-bit Serial 16-Pin SOIC W T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 234
- Inventory 1
- PCNs 7
- GIDEP-Alerts 1
- MaskPart MAX195BCWE+%
- IntroductionDate Dec 01, 1997
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input No
- Differential Nonlinearity ±2LSB
- Digital Interface Type Serial (SPI, QSPI, Microwire)
- Digital Supply Support Yes
- Full Scale Error ±0.018%FSR
- Input Signal Type Single-Ended
- Input Type Voltage
- Input Voltage 5V|±5V
- Integral Nonlinearity Error ±0.004%FSR
- Maximum Dual Supply Voltage (V) ±5.25
- Maximum Negative Supply Voltage (V) 5.25
- Maximum Positive Supply Voltage (V) 5.25
- Maximum Power Dissipation (mW) 80
- Maximum Single Supply Voltage (V) N/R
- Minimum Dual Supply Voltage (V) ±4.75
- Minimum Negative Supply Voltage (V) 4.75
- Minimum Positive Supply Voltage (V) 4.75
- Minimum Single Supply Voltage (V) N/R
- No Missing Codes (bit) 16
- Number of ADCs 1
- Number of Input Channels 1
- Polarity of Input Voltage Unipolar|Bipolar
- Resolution 16bit
- Sample and Hold Yes
- Sampling Rate 85ksps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade Commercial
- Typical Dual Supply Voltage (V) ±5
- Typical Power Dissipation (mW) 55
- Typical Single Supply Voltage (V) N/R
- Voltage Reference External
- Voltage Supply Source Dual
