MAX19515ETM+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX19515ETM+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX19515ETM+

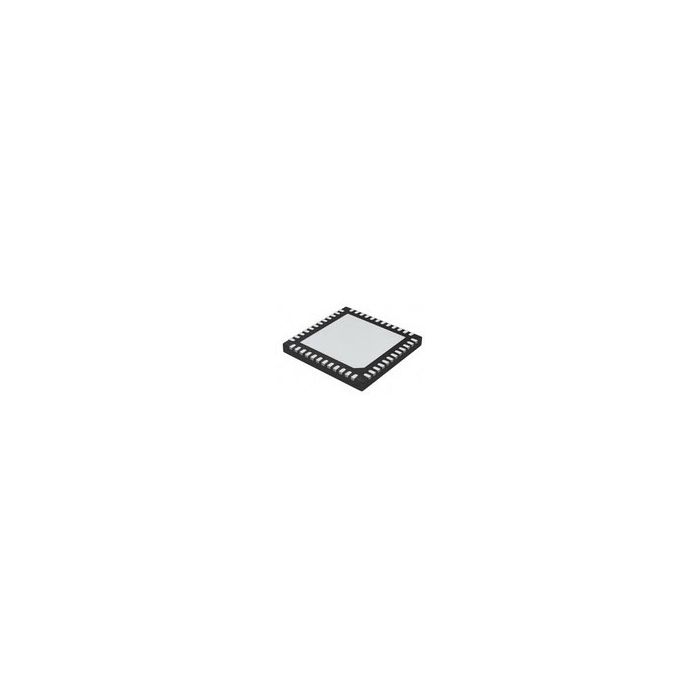

2-Channel Dual ADC Pipelined 65Msps 10-bit Parallel/Serial (3-Wire, SPI) 48-Pin TQFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 15
  • Inventory 3
  • PCNs 8
  • MaskPart MAX19515ETM+%
  • IntroductionDate Oct 01, 2008

Parametry

  • Architecture Pipelined
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.7LSB
  • Digital Interface Type Parallel|Serial (3-Wire, SPI)
  • Digital Supply Support No
  • Full Scale Error ±1.5%FSR
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage 1.5Vp-p
  • Integral Nonlinearity Error ±0.8LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.5
  • Maximum Power Dissipation (mW) 99
  • Maximum Single Supply Voltage (V) 1.9
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.5
  • Minimum Single Supply Voltage (V) 1.7
  • No Missing Codes (bit) N/A
  • Number of ADCs 2
  • Number of Input Channels 2
  • Polarity of Input Voltage N/A
  • Resolution 10bit
  • Sample and Hold Yes
  • Sampling Rate 65Msps
  • Signal to Noise Ratio 60.2dBFS(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 85
  • Typical Single Supply Voltage (V) 1.8
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 2-Channel Dual ADC Pipelined 65Msps 10-bit Parallel/Serial (3-Wire, SPI) 48-Pin TQFN EP
