MAX194BEWE+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX194BEWE+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX194BEWE+

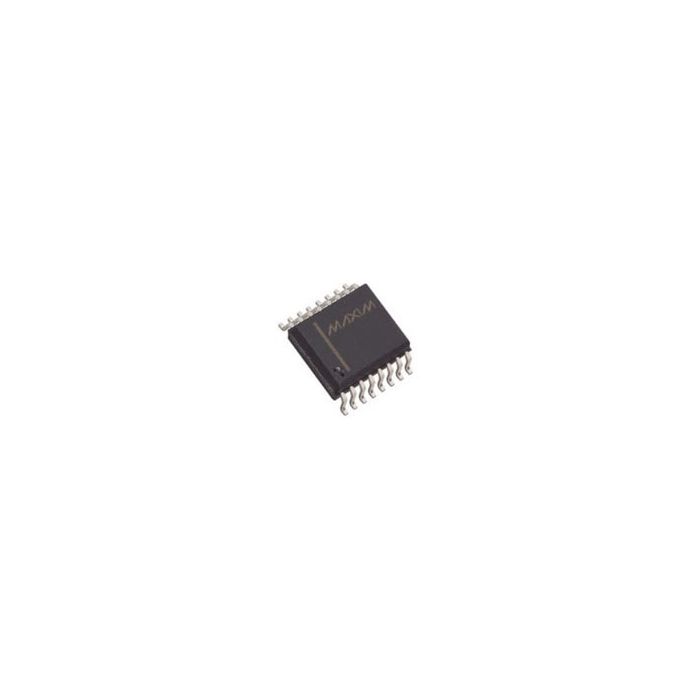

1-Channel Single ADC SAR 85ksps 14-bit Serial 16-Pin SOIC W

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 76
  • Inventory 2
  • PCNs 7
  • MaskPart MAX194BEWE+%
  • IntroductionDate Dec 01, 1997

Parametry

  • Architecture SAR
  • Converter Type Audio
  • Differential Input No
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Serial (SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±4LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 5V|±5V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) ±5.25
  • Maximum Negative Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 80
  • Maximum Single Supply Voltage (V) N/R
  • Minimum Dual Supply Voltage (V) ±4.75
  • Minimum Negative Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) N/R
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 14bit
  • Sample and Hold Yes
  • Sampling Rate 85ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) ±5
  • Typical Power Dissipation (mW) 55
  • Typical Single Supply Voltage (V) N/R
  • Voltage Reference External
  • Voltage Supply Source Dual

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 85ksps 14-bit Serial 16-Pin SOIC W
