MAX183BENG-T

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX183BENG-T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX183BENG-T

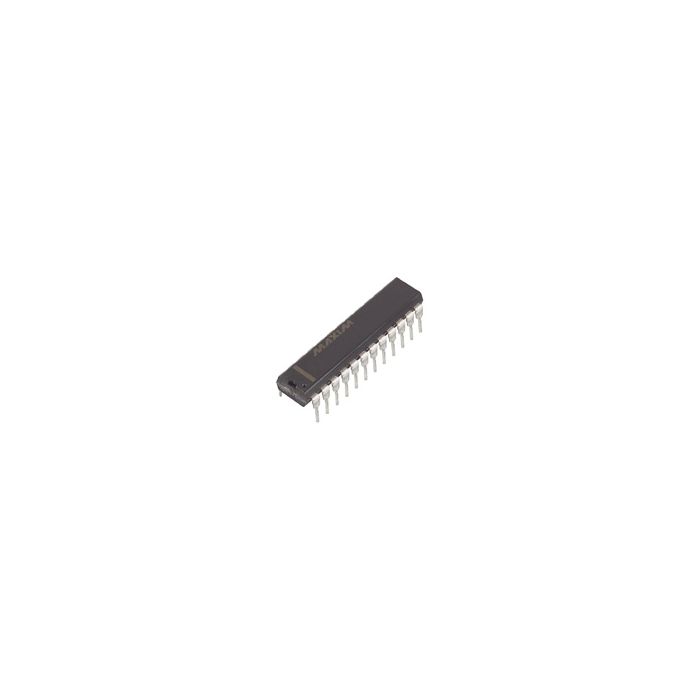

1-Channel Single ADC SAR 308ksps 12-bit Parallel 24-Pin PDIP N T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 75
  • PCNs 7
  • MaskPart MAX183BENG%
  • IntroductionDate Apr 01, 1991

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity ±0.9LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±6LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 5V/10V|±5V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) -16.5/5.25
  • Maximum Negative Supply Voltage (V) 16.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 155
  • Maximum Single Supply Voltage (V) N/R
  • Minimum Dual Supply Voltage (V) -10.8/4.75
  • Minimum Negative Supply Voltage (V) 10.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) N/R
  • No Missing Codes (bit) 12
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 12bit
  • Sample and Hold No
  • Sampling Rate 308ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended Industrial
  • Typical Dual Supply Voltage (V) -12/5
  • Typical Power Dissipation (mW) 90
  • Typical Single Supply Voltage (V) N/R
  • Voltage Reference External
  • Voltage Supply Source Dual

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 308ksps 12-bit Parallel 24-Pin PDIP N T/R
