MAX182ACWI+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX182ACWI+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX182ACWI+T

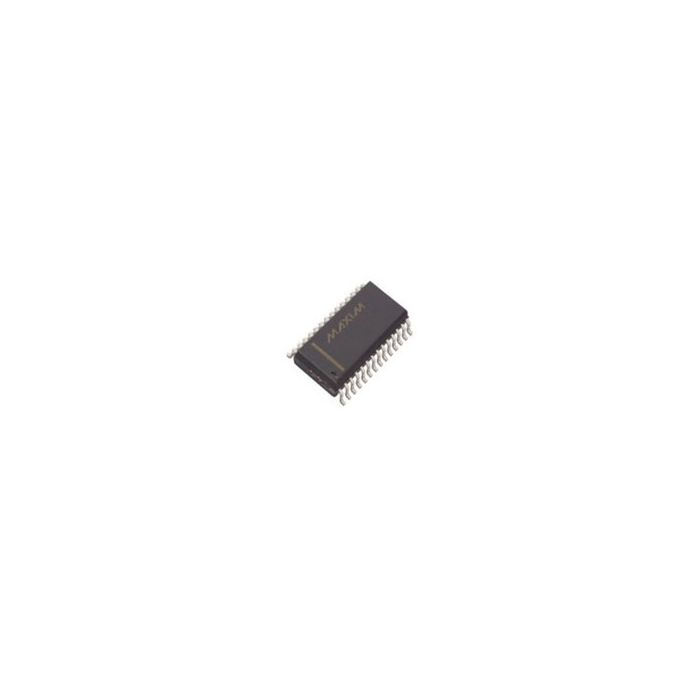

4-Channel Single ADC SAR 17ksps 12-bit Parallel 28-Pin SOIC W T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 17
  • Inventory 1*
  • PCNs 7
  • MaskPart MAX182ACWI+%
  • IntroductionDate Dec 07, 1995

Parametry

  • Architecture SAR
  • Converter Type Audio
  • Differential Input No
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Parallel
  • Digital Supply Support Yes
  • Full Scale Error ±0.5LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 5V
  • Integral Nonlinearity Error N/A
  • Maximum Dual Supply Voltage (V) -5.25/15.75
  • Maximum Negative Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Positive Supply Voltage (V) 5.25/15.75
  • Maximum Power Dissipation (mW) 1000
  • Maximum Single Supply Voltage (V) N/R
  • Minimum Dual Supply Voltage (V) -4.75/11.4
  • Minimum Negative Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Minimum Positive Supply Voltage (V) 4.75/11.4
  • Minimum Single Supply Voltage (V) N/R
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 4
  • Polarity of Input Voltage Unipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 17ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) -5/15
  • Typical Power Dissipation (mW) 102
  • Typical Single Supply Voltage (V) N/R
  • Voltage Reference Internal|External
  • Voltage Supply Source Dual

Więcej informacji

Do pobrania Download
Main description 4-Channel Single ADC SAR 17ksps 12-bit Parallel 28-Pin SOIC W T/R
