MAX174AEWI+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX174AEWI+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX174AEWI+T

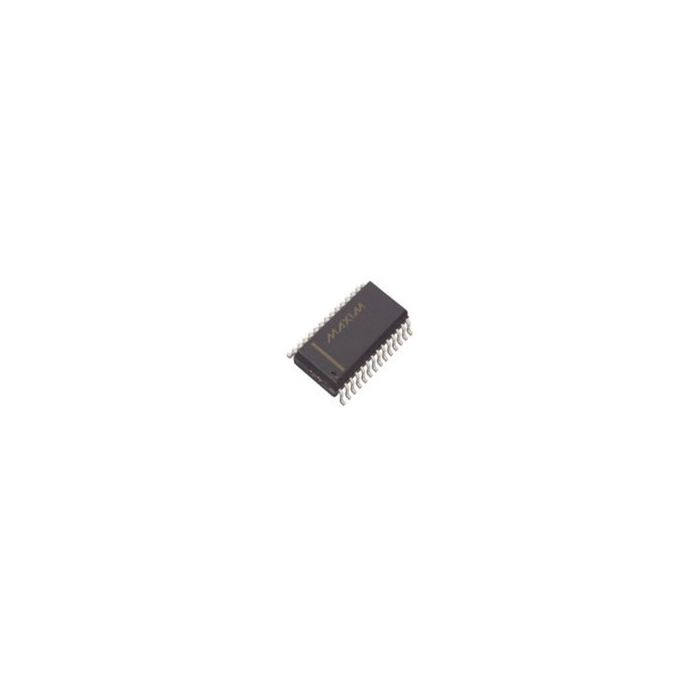

1-Channel Single ADC SAR 125ksps 12-bit Parallel 28-Pin SOIC W T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 258
- Inventory 1*
- PCNs 7
- MaskPart MAX174AEWI+%
- IntroductionDate Mar 01, 1990
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input No
- Differential Nonlinearity ±1LSB
- Digital Interface Type Parallel
- Digital Supply Support Yes
- Full Scale Error N/A
- Input Signal Type Single-Ended
- Input Type Voltage
- Input Voltage 10V/20V|±5V/±10V
- Integral Nonlinearity Error ±0.75LSB
- Maximum Dual Supply Voltage (V) ±16.5
- Maximum Negative Supply Voltage (V) 16.5
- Maximum Positive Supply Voltage (V) 16.5/5.5
- Maximum Power Dissipation (mW) 265
- Maximum Single Supply Voltage (V) N/R
- Maximum Storage Temperature (°C) 160
- Minimum Dual Supply Voltage (V) ±11.4
- Minimum Negative Supply Voltage (V) 11.4
- Minimum Positive Supply Voltage (V) 11.4/4.5
- Minimum Single Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -55
- No Missing Codes (bit) 12
- Number of ADCs 1
- Number of Input Channels 1
- Polarity of Input Voltage Unipolar|Bipolar
- Resolution 12bit
- Sample and Hold No
- Sampling Rate 125ksps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) ±12|±15
- Typical Power Dissipation (mW) 150
- Typical Single Supply Voltage (V) N/R
- Voltage Reference Internal|External
- Voltage Supply Source Dual
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | 1-Channel Single ADC SAR 125ksps 12-bit Parallel 28-Pin SOIC W T/R |
