MAX14891EATP+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX14891EATP+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX14891EATP+

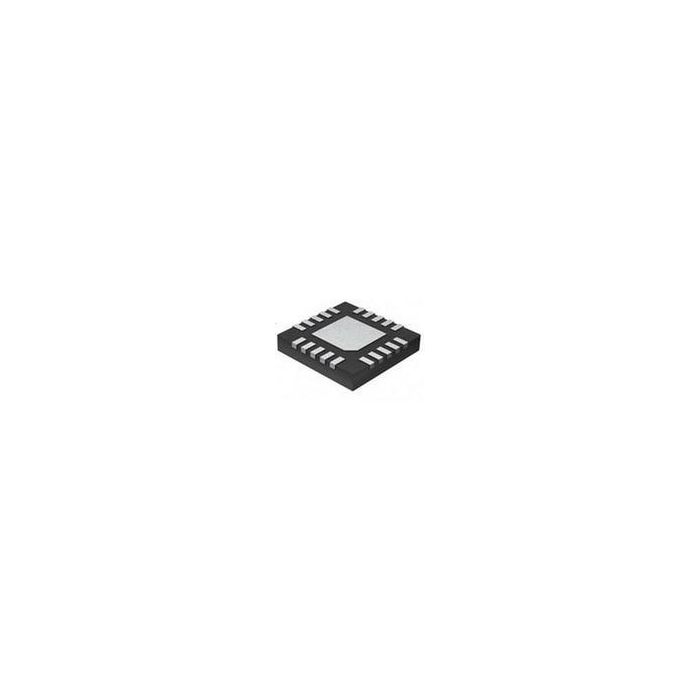

Quad Receiver RS-422/RS-485 20-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • PCNs 7
  • MaskPart MAX14891EATP+%
  • IntroductionDate Dec 01, 2014

Parametry

  • Channel Operating Mode N/A
  • Charge Pump No
  • Data Rate 35Mbps(Min)
  • Data Transmission Topology Multidrop|Multipoint
  • Driving Mode N/A
  • External Capacitor Capacitance (uF) 0.1
  • Fail Safe Open/Short
  • Function Line Receiver
  • Input Logic Level N/A
  • Interface Standards RS-422|RS-485
  • Isolation No
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 14
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.5
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers per Line 1@RS-422|32@RS-485
  • Number of External Capacitors 1
  • Number of Receiver Enables N/A
  • Number of Receivers 4
  • Number of Receivers per Line 10@RS-422|32@RS-485
  • Number of Transceivers N/R
  • Number of Transmitter Enables N/A
  • Number of Transmitters N/R
  • Output Logic Level N/A
  • Power Down Mode N/A
  • Power Supply Type Single
  • Receiver Communication Type RS-422|RS-485
  • Receiver Signal Type Differential
  • Supplier Temperature Grade Automotive
  • Transmitter Communication Type N/A
  • Transmitter Signal Type N/R
  • Typical Dual Supply Voltage (V) N/R
  • Typical Shutdown Current (uA) N/A
  • Typical Single Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Quad Receiver RS-422/RS-485 20-Pin TQFN EP T/R
