MAX14566BEETA+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX14566BEETA+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX14566BEETA+T

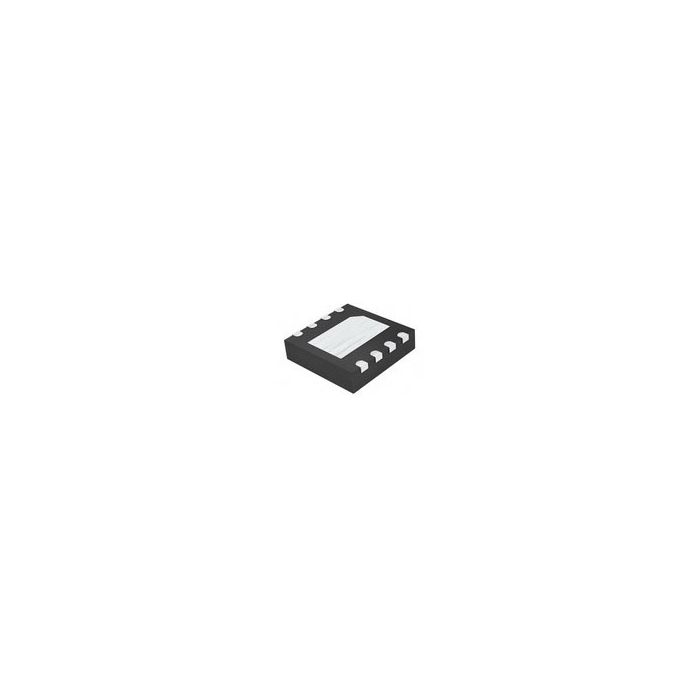

Analog Switch Single SPST 8-Pin TDFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 2
  • PCNs 11
  • GIDEP-Alerts 1
  • MaskPart MAX14566BEETA+%
  • IntroductionDate Oct 01, 2010

Parametry

  • Chip Enable Signals Yes
  • Configuration Single SPST
  • Function USB Switch
  • Input Signal Type Differential
  • Latch-Up Proof No
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 1000(Typ)@5V
  • Maximum High Level Output Current (mA) 30
  • Maximum Low Level Output Current (mA) 30
  • Maximum On Resistance (Ohm) 6.5@5.5V
  • Maximum On Resistance Range (Ohm) 5 to 10
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 954
  • Maximum Propagation Delay Bus to Bus (ns) 0.06(Typ)@5V
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.2@5.25V@-40C to 85C
  • Maximum Turn-Off Time (ns) 1000(Typ)@5V
  • Maximum Turn-On Time (ns) 20000(Typ)@5V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.8
  • Minimum Storage Temperature (°C) -65
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 1
  • Number of Inputs per Chip 1
  • Number of Outputs per Chip 1
  • Output Signal Type Differential
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features N/A
  • Supplier Temperature Grade Extended
  • Switch Architecture SPST
  • Switch Control Logic Active High
  • Switch Normal Position NO
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) 0.12@5V

Więcej informacji

Do pobrania Download
Main description Analog Switch Single SPST 8-Pin TDFN EP T/R
