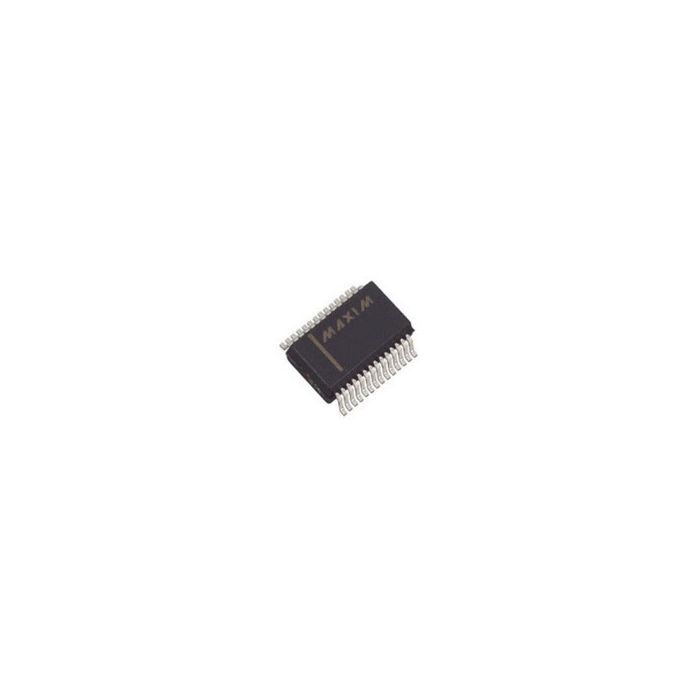

MAX1403EAI+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1403EAI+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1403EAI+T

5-Channel Single ADC Delta-Sigma 4.8ksps 18-bit Serial 28-Pin SSOP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • Inventory 3*
  • PCNs 7
  • MaskPart MAX1403EAI+%
  • IntroductionDate Apr 01, 1999

Parametry

  • Architecture Delta-Sigma
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type Serial (3-Wire, 4-Wire, SPI, QSPI)
  • Digital Supply Support Yes
  • Full Scale Error 3.5%FSR
  • Input Signal Type Pseudo-Differential|Differential
  • Input Type Voltage
  • Input Voltage 1.25V|±1.25V
  • Integral Nonlinearity Error ±0.0015%FSR
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 21.45
  • Maximum Single Supply Voltage (V) 3.6
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) 16
  • Number of ADCs 1
  • Number of Input Channels 5|3
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 18bit
  • Sample and Hold No
  • Sampling Rate 4.8ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 16.9
  • Typical Single Supply Voltage (V) 3
  • Voltage Reference External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 5-Channel Single ADC Delta-Sigma 4.8ksps 18-bit Serial 28-Pin SSOP T/R
