MAX139EQH-TD+
| Do pobrania | Download |
|---|---|
| Main description | 1-Channel Single ADC Dual Slope 3 1/2Digit LED 44-Pin PLCC T/R |

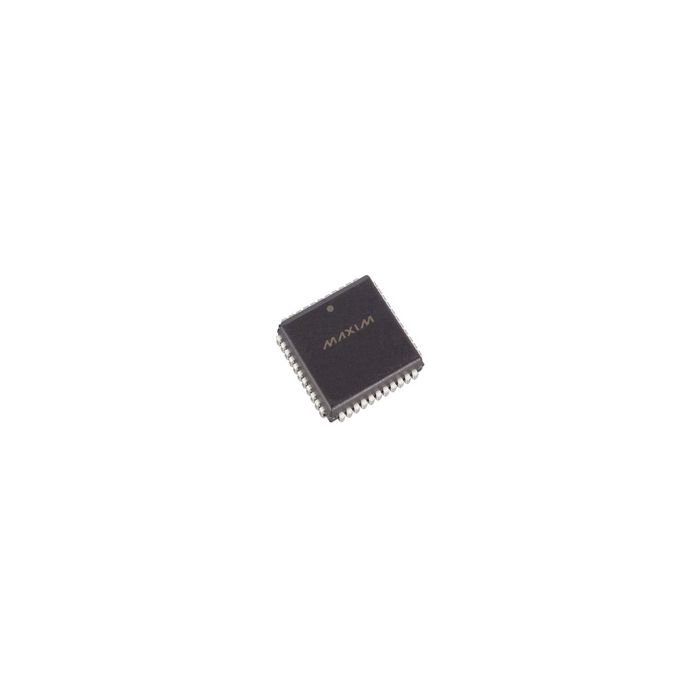

1-Channel Single ADC Dual Slope 3 1/2Digit LED 44-Pin PLCC T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 16
- PCNs 7
- MaskPart MAX139EQH%D+
- IntroductionDate Dec 07, 1995
Parametry
- Architecture Dual Slope
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity N/A
- Digital Interface Type LED
- Digital Supply Support No
- Full Scale Error N/A
- Input Signal Type Differential
- Input Type Voltage
- Input Voltage N/A
- Integral Nonlinearity Error ±1Counts
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 7
- Maximum Power Dissipation (mW) 1067
- Maximum Single Supply Voltage (V) 7
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 2.5
- Minimum Single Supply Voltage (V) 2.5
- No Missing Codes (bit) N/A
- Number of ADCs 1
- Number of Input Channels 1
- Polarity of Input Voltage N/A
- Resolution 3 1/2Digit
- Sample and Hold No
- Sampling Rate N/A
- Signal to Noise Ratio N/A
- Single-Ended Input No
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 5
- Voltage Reference Internal|External
- Voltage Supply Source Single
