MAX1363EUB+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1363EUB+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1363EUB+T

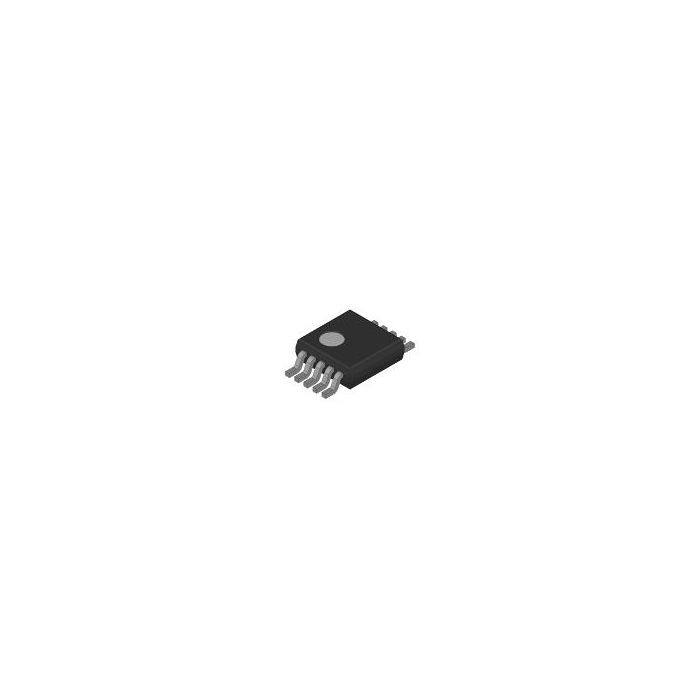

4-Channel Single ADC SAR 133ksps 12-bit Serial 10-Pin uMAX T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 10
  • Inventory 1
  • PCNs 7
  • MaskPart MAX1363EUB+%
  • IntroductionDate Jul 01, 2004

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Serial (2-Wire, I2C)
  • Digital Supply Support No
  • Full Scale Error ±4LSB
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 2.048V|±1.024V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 444.4
  • Maximum Single Supply Voltage (V) 3.6
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 4|2
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 133ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 2
  • Typical Single Supply Voltage (V) 3.3
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 4-Channel Single ADC SAR 133ksps 12-bit Serial 10-Pin uMAX T/R
