MAX13430EETB+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX13430EETB+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX13430EETB+T

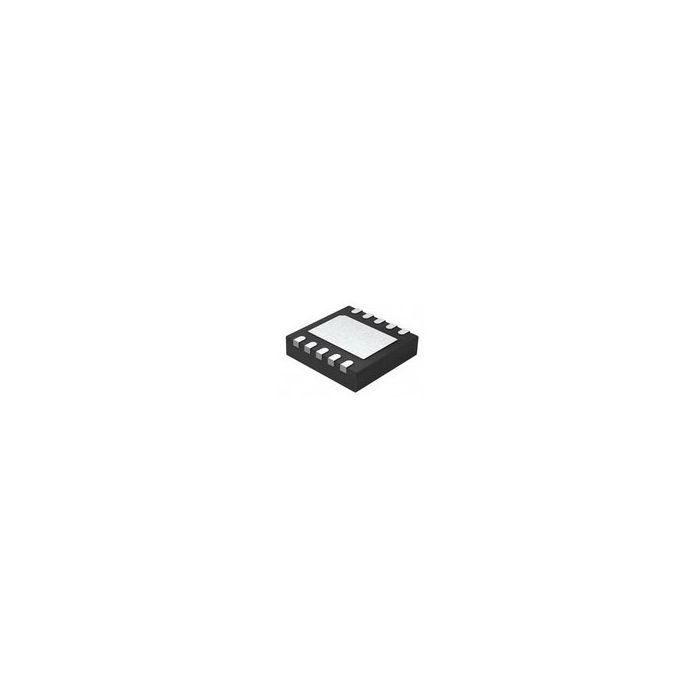

Single Transmitter/Receiver RS-485 10-Pin TDFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 26
  • Inventory 3
  • PCNs 9
  • GIDEP-Alerts 1
  • MaskPart MAX13430EETB+%
  • IntroductionDate Oct 01, 2008

Parametry

  • Data Rate 500Kbps(Min)
  • Data Transmission Topology Multipoint
  • Driving Mode 3-State
  • Function Line Transceiver
  • Input Logic Level N/A
  • Interface Standards EIA/TIA-485|RS-485
  • Maximum Dual Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Single Supply Voltage (V) N/R
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.001|2
  • Minimum Dual Supply Voltage (V) 1.62|3
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) N/R
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers per Line 32
  • Number of Receiver Enables 1
  • Number of Receivers 1
  • Number of Receivers per Line 32
  • Number of Transceivers 1
  • Number of Transmitter Enables 1
  • Number of Transmitters 1
  • Output Logic Level N/A
  • Power Down Mode N/A
  • Power Supply Type Dual
  • Receiver Communication Type RS-485
  • Receiver Signal Type Differential
  • Supplier Temperature Grade Extended
  • Transmitter Communication Type RS-485
  • Transmitter Signal Type Differential
  • Typical Dual Supply Voltage (V) 1.8|2.5|3.3|5
  • Typical Single Supply Voltage (V) N/R

Więcej informacji

Do pobrania Download
Main description Single Transmitter/Receiver RS-485 10-Pin TDFN EP T/R
