MAX1302BEUG

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1302BEUG_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1302BEUG

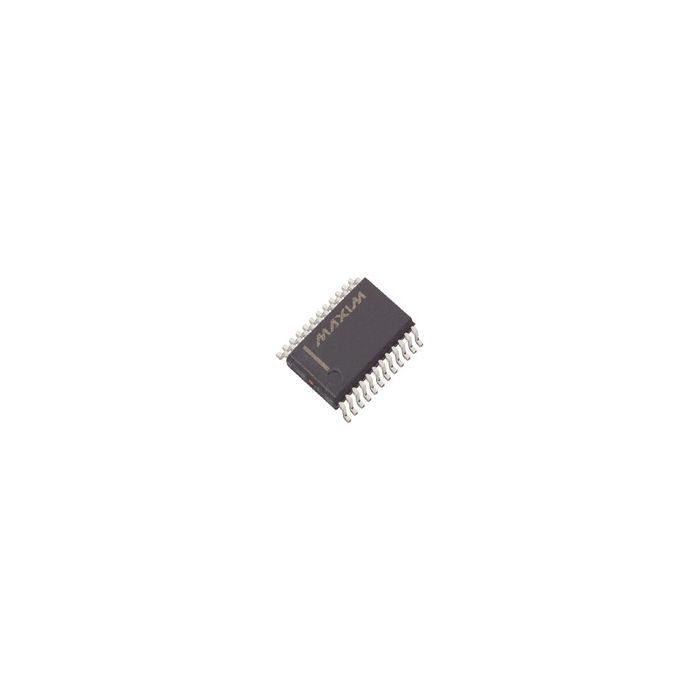

8-Channel Single ADC SAR 115ksps 16-bit Serial 24-Pin TSSOP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 252
  • PCNs 7
  • MaskPart MAX1302BEUG%
  • IntroductionDate May 01, 2005

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity -1/2LSB
  • Digital Interface Type Serial (SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±0.5%FSR
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage -2.048V/-4.096V/2.048V/4.096V|±1.024V/±2.048V/±4.096V
  • Integral Nonlinearity Error ±4LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 976
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 8|4
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 16bit
  • Sample and Hold Yes
  • Sampling Rate 115ksps
  • Signal to Noise Ratio 90dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 8-Channel Single ADC SAR 115ksps 16-bit Serial 24-Pin TSSOP
