MAX1288ETA+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1288ETA+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1288ETA+T

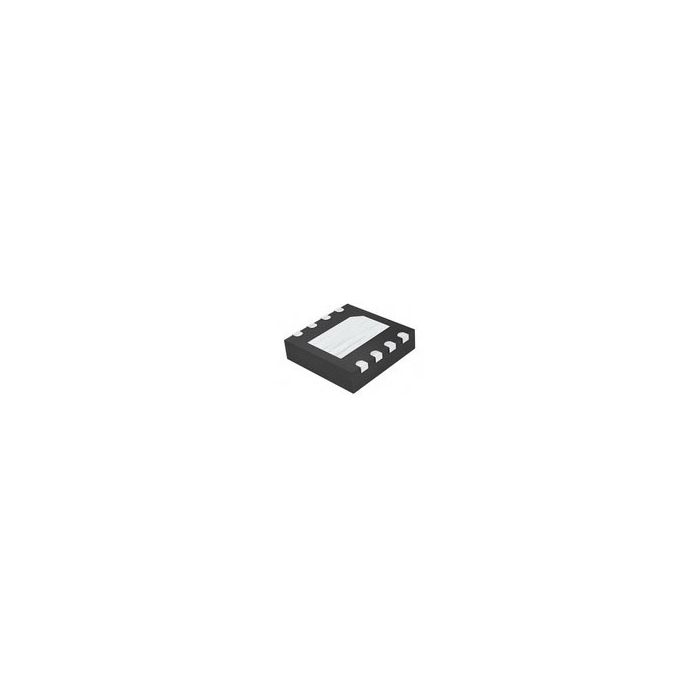

1-Channel Single ADC SAR 150ksps 12-bit Serial 8-Pin TDFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 861
  • Inventory 3
  • PCNs 9
  • GIDEP-Alerts 1
  • MaskPart MAX1288ETA+%
  • IntroductionDate Oct 01, 2001

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Serial (3-Wire, SPI, QSPI, Microwire)
  • Digital Supply Support No
  • Full Scale Error ±4LSB
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage 4.096V|±2.048V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1481
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 150ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 150ksps 12-bit Serial 8-Pin TDFN EP T/R
