MAX1279BETC+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1279BETC+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1279BETC+

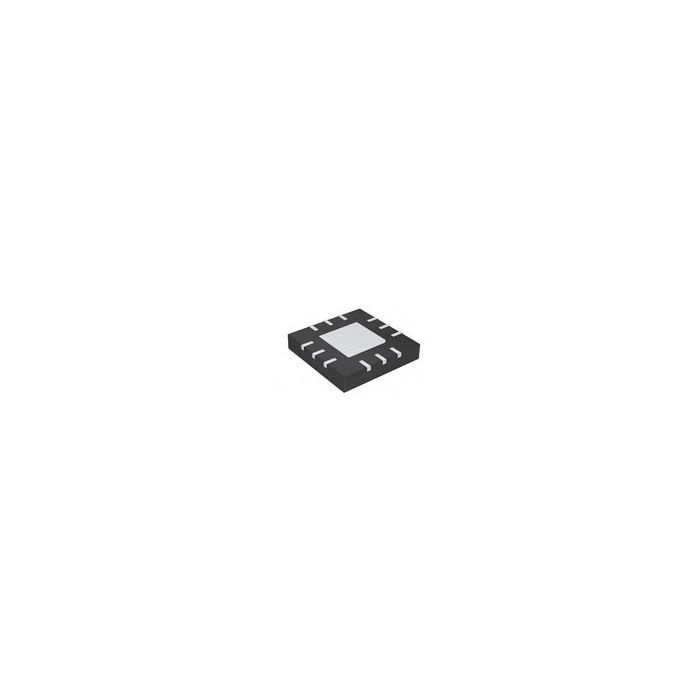

1-Channel Single ADC SAR 1.5Msps 12-bit Serial 12-Pin TQFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 237
  • Inventory 3
  • PCNs 7
  • MaskPart MAX1279BETC+%
  • IntroductionDate Aug 01, 2004

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity -1/1.5LSB
  • Digital Interface Type Serial (3-Wire, SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±6LSB
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage ±1.024V
  • Integral Nonlinearity Error ±1.5LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1349
  • Maximum Single Supply Voltage (V) 3.6
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 1.5Msps
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 22
  • Typical Single Supply Voltage (V) 3.3
  • Voltage Reference Internal
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 1.5Msps 12-bit Serial 12-Pin TQFN EP
