MAX1270BENG-T

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1270BENG-T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1270BENG-T

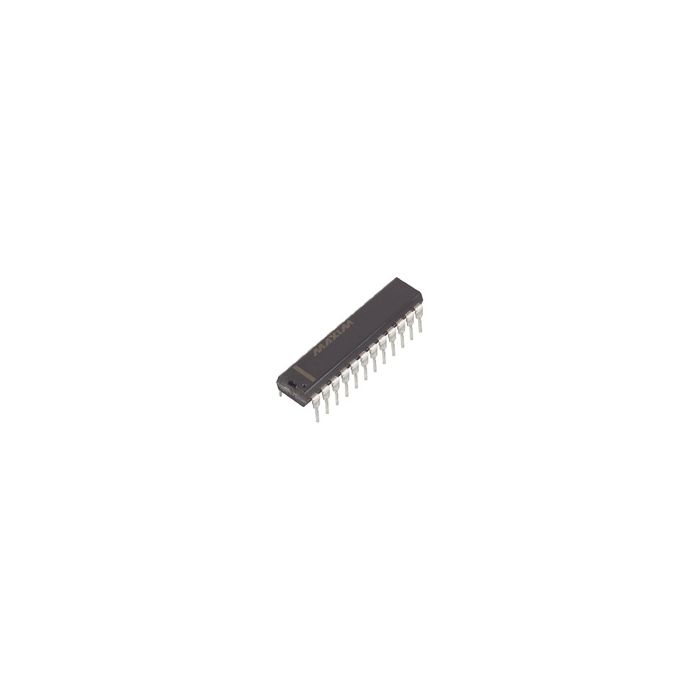

8-Channel Single ADC SAR 110ksps 12-bit Serial 24-Pin PDIP N T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 400
  • Inventory 3*
  • PCNs 7
  • MaskPart MAX1270BENG%
  • IntroductionDate Mar 01, 1999

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Serial (3-Wire, SPI, QSPI, Microwire)
  • Digital Supply Support No
  • Full Scale Error ±10LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 5V/10V|±5V/±10V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 1067
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 8
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 110ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 30
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 8-Channel Single ADC SAR 110ksps 12-bit Serial 24-Pin PDIP N T/R
