MAX1266ACEI+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1266ACEI+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1266ACEI+

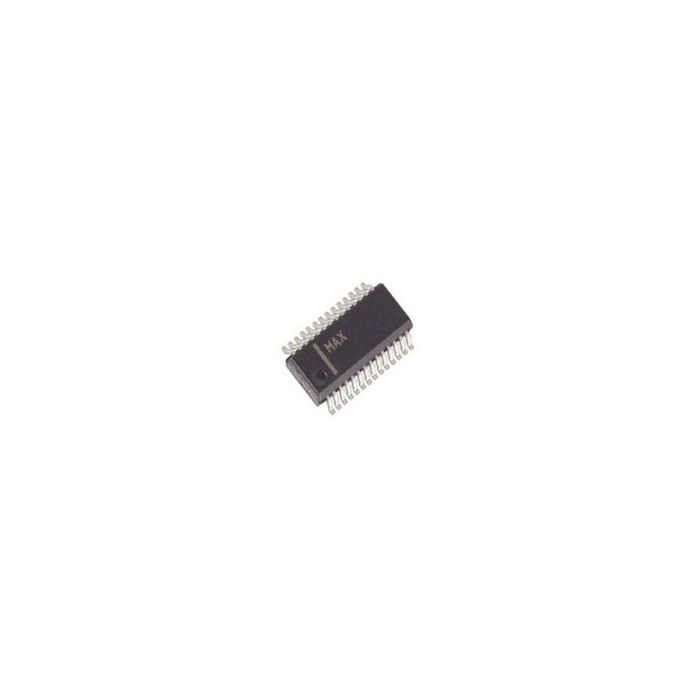

6-Channel Single ADC SAR 420ksps 12-bit Parallel 28-Pin QSOP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 20
  • PCNs 7
  • MaskPart MAX1266ACEI+%
  • IntroductionDate Apr 01, 2003

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±4LSB
  • Input Signal Type Single-Ended|Pseudo-Differential
  • Input Type Voltage
  • Input Voltage 2.5V|±1.25V
  • Integral Nonlinearity Error ±0.5LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 667
  • Maximum Single Supply Voltage (V) 5.5
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) 4.5
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 6|3
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 420ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 10
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 6-Channel Single ADC SAR 420ksps 12-bit Parallel 28-Pin QSOP
