MAX12553ETL+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX12553ETL+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX12553ETL+

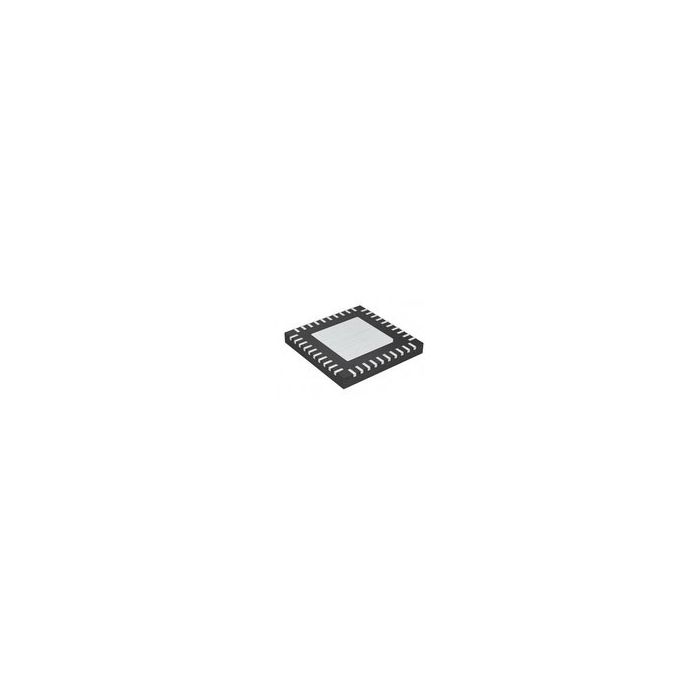

1-Channel Single ADC Pipelined 65Msps 14-bit Parallel 40-Pin TQFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 328
  • Inventory 1
  • PCNs 7
  • MaskPart MAX12553ETL+%
  • IntroductionDate Aug 01, 2004

Parametry

  • Architecture Pipelined
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±4.9%FSR
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage ±1.024V
  • Integral Nonlinearity Error ±4.2LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 406
  • Maximum Single Supply Voltage (V) 3.6
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3.15
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 14bit
  • Sample and Hold Yes
  • Sampling Rate 65Msps
  • Signal to Noise Ratio 74dB(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 363
  • Typical Single Supply Voltage (V) 3.3
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Pipelined 65Msps 14-bit Parallel 40-Pin TQFN EP
