MAX1232ESA

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1232ESA_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1232ESA

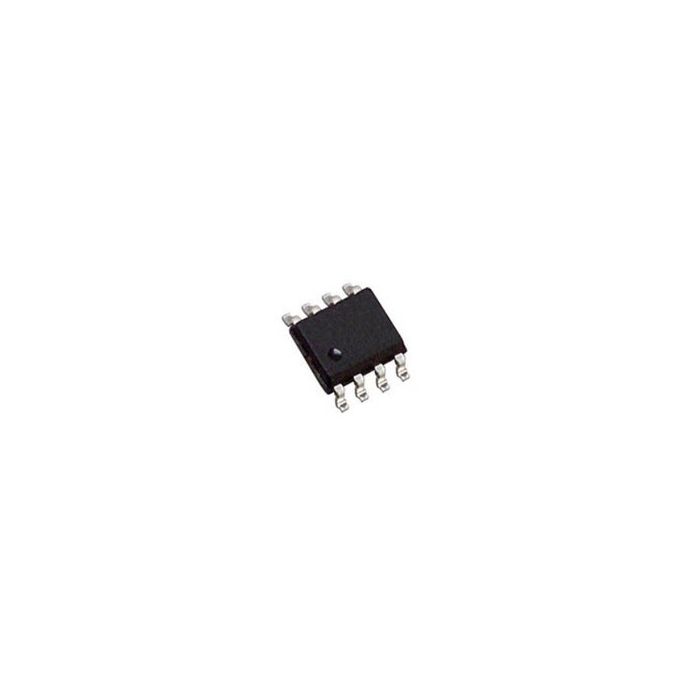

Processor Supervisor 4.62V 1 Active High/Active Low/Open Drain 8-Pin SOIC N

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • Inventory 2
  • PCNs 11
  • MaskPart MAX1232ESA%
  • IntroductionDate Feb 01, 1991

Parametry

  • Battery Backup Switching No
  • Chip Enable Signals No
  • Manual Reset Yes
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Reset Active Time (ms) 1000
  • Maximum Reset Threshold Voltage (V) 4.74|4.49
  • Maximum Storage Temperature (°C) 160
  • Maximum Supply Current (uA) 200
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Reset Threshold Voltage (V) 4.5|4.25
  • Minimum Storage Temperature (°C) -65
  • Monitored Voltage (V) 4.5|4.75
  • Number of Supervisors 1
  • Output Driver Active High/Active Low/Open Drain
  • Power Fail Detection No
  • Supplier Temperature Grade Extended Industrial
  • Typical Operating Supply Voltage (V) 5
  • Typical Reset Threshold Voltage (V) 4.62
  • Watchdog Timer Yes

Więcej informacji

Do pobrania Download
Main description Processor Supervisor 4.62V 1 Active High/Active Low/Open Drain 8-Pin SOIC N
