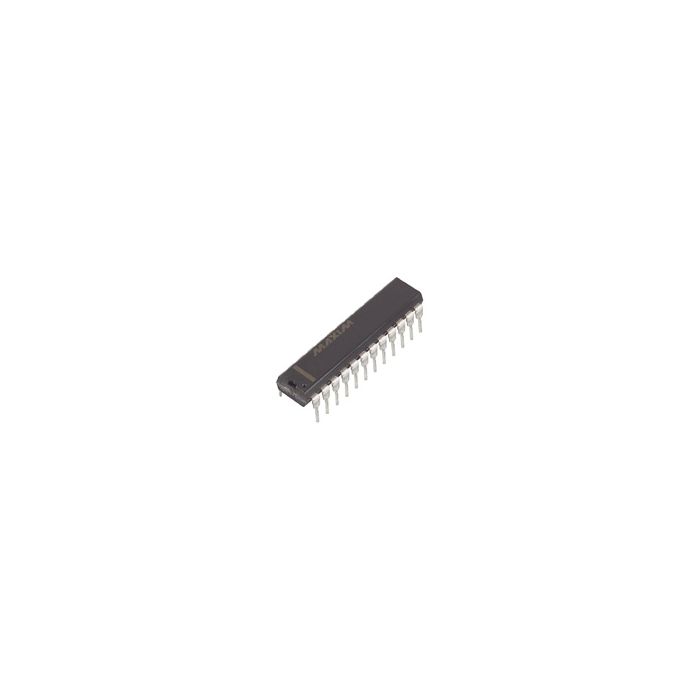

MAX122AENG-T

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX122AENG-T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX122AENG-T

1-Channel Single ADC SAR 333ksps 12-bit Parallel 24-Pin PDIP N T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 96
  • Inventory 3*
  • PCNs 7
  • MaskPart MAX122AENG%
  • IntroductionDate Sep 01, 1992

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity ±0.75LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±8LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage ±5V
  • Integral Nonlinearity Error ±0.75LSB
  • Maximum Dual Supply Voltage (V) -15.75/5.25
  • Maximum Negative Supply Voltage (V) 15.75
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 315
  • Maximum Single Supply Voltage (V) N/R
  • Minimum Dual Supply Voltage (V) -10.8/4.75
  • Minimum Negative Supply Voltage (V) 10.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) N/R
  • No Missing Codes (bit) 12
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 333ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) -12/5|-15/5
  • Typical Power Dissipation (mW) 210
  • Typical Single Supply Voltage (V) N/R
  • Voltage Reference Internal
  • Voltage Supply Source Dual

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 333ksps 12-bit Parallel 24-Pin PDIP N T/R
