MAX11960ETJ+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX11960ETJ+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX11960ETJ+T

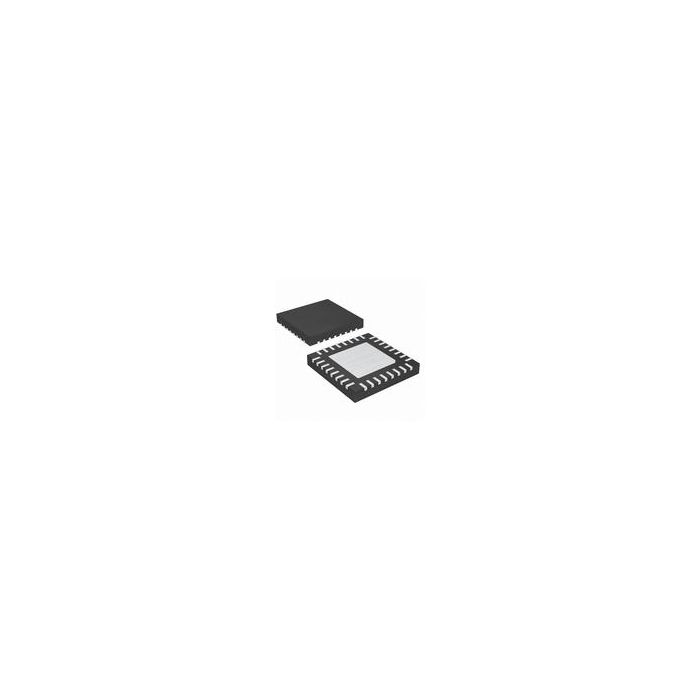

2-Channel Dual ADC SAR 1Msps 20-bit Serial 32-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • Inventory 1
  • PCNs 7
  • MaskPart MAX11960ETJ+%

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.9LSB
  • Digital Interface Type Serial (SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±175LSB
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage ±3.3V
  • Integral Nonlinearity Error ±5LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 16.44
  • Maximum Single Supply Voltage (V) 1.9
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.7
  • No Missing Codes (bit) 20
  • Number of ADCs 2
  • Number of Input Channels 2
  • Polarity of Input Voltage Bipolar
  • Resolution 20bit
  • Sample and Hold Yes
  • Sampling Rate 1Msps
  • Signal to Noise Ratio 99dB(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 13.56
  • Typical Single Supply Voltage (V) 1.8
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 2-Channel Dual ADC SAR 1Msps 20-bit Serial 32-Pin TQFN EP T/R
