MAX11903ETP+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX11903ETP+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX11903ETP+

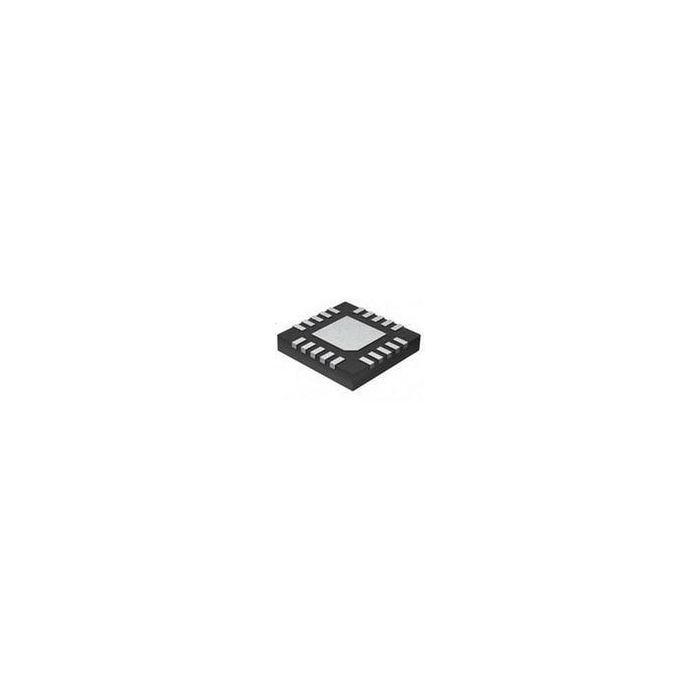

1-Channel Single ADC SAR 1.6Msps 18-bit Serial 20-Pin TQFN EP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 213
- Inventory 2
- PCNs 7
- MaskPart MAX11903ETP+%
- IntroductionDate Jun 25, 2014
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±0.5LSB
- Digital Interface Type Serial (4-Wire, SPI, QSPI, Microwire)
- Digital Supply Support Yes
- Full Scale Error ±50LSB
- Input Signal Type Differential
- Input Type Voltage
- Input Voltage ±3.3V
- Integral Nonlinearity Error ±2LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) 10.2
- Maximum Single Supply Voltage (V) 1.9
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.7
- Minimum Storage Temperature (°C) -65
- No Missing Codes (bit) 18
- Number of ADCs 1
- Number of Input Channels 1
- Polarity of Input Voltage Bipolar
- Resolution 18bit
- Sample and Hold Yes
- Sampling Rate 1.6Msps
- Signal to Noise Ratio 98dB(Typ)
- Single-Ended Input No
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 8.4
- Typical Single Supply Voltage (V) 1.8
- Voltage Reference Internal|External
- Voltage Supply Source Analog and Digital
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | 1-Channel Single ADC SAR 1.6Msps 18-bit Serial 20-Pin TQFN EP |
