MAX11900GTP+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX11900GTP+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX11900GTP+

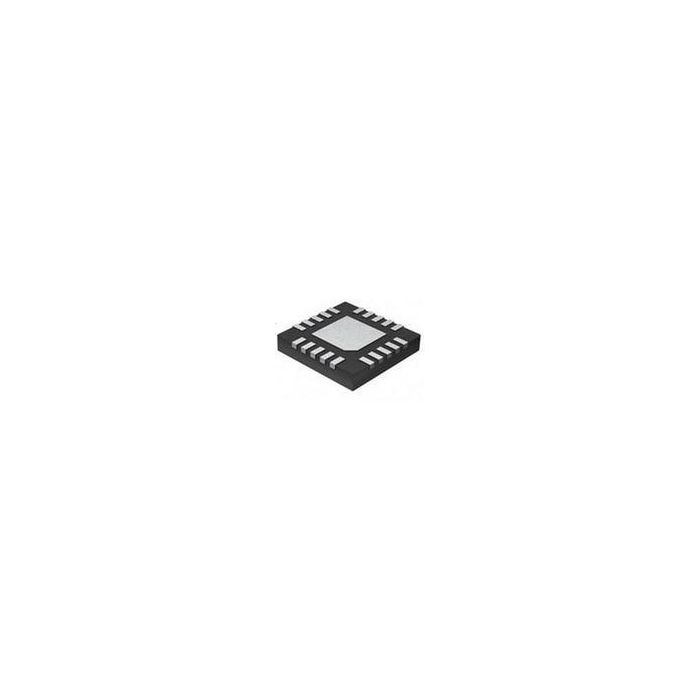

1-Channel Single ADC SAR 1Msps 16-bit Serial 20-Pin TQFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 207
  • PCNs 7
  • MaskPart MAX11900GTP+%
  • IntroductionDate Apr 01, 2015

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.1LSB(Typ)
  • Digital Interface Type Serial (4-Wire, SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±2LSB(Typ)
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage ±3.3V
  • Integral Nonlinearity Error ±0.1LSB(Typ)
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 105
  • Maximum Power Dissipation (mW) 2424.2
  • Maximum Single Supply Voltage (V) 1.9
  • Maximum Storage Temperature (°C) 150
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.7
  • Minimum Storage Temperature (°C) -65
  • No Missing Codes (bit) 16
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 16bit
  • Sample and Hold Yes
  • Sampling Rate 1Msps
  • Signal to Noise Ratio 95.6dB(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Automotive
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 6.7
  • Typical Single Supply Voltage (V) 1.8
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 1Msps 16-bit Serial 20-Pin TQFN EP
